| Sapporo Municipal Subway 9000 series | |
|---|---|

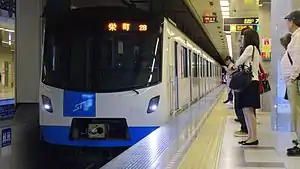

 9x05 at Ōdōri in September 2016 | |
 Interior (January 2016) | |
| In service | 2015–present |
| Manufacturer | Kawasaki Heavy Industries |
| Built at | Kobe |
| Replaced | 7000 series |
| Constructed | 2014-2016 |
| Entered service | 8 May 2015 |
| Number built | 80 vehicles (20 sets) |
| Number in service | 80 vehicles (20 sets) |
| Formation | 4 cars per trainset |
| Fleet numbers | 9x01-9x20 |
| Operator(s) | Sapporo Municipal Subway |
| Line(s) served | Tōhō Line |
| Specifications | |
| Car body construction | Aluminium |
| Train length | 69.25 m (227 ft 2 in) |
| Car length | 17.425 m (57 ft 2.0 in) (end cars) 17.2 m (56 ft 5 in) (intermediate cars) |
| Width | 3.08 m (10 ft 1 in) |
| Height | 3.91 m (12 ft 10 in) |
| Floor height | 1.3 m (4 ft 3 in) |
| Doors | 3 pairs per side |
| Maximum speed | 70 km/h (43.5 mph) |
| Traction system | IGBT–VVVF |
| Traction motors | 3-phase AC induction motor |
| Acceleration | 0.97 m/s2 (2.2 mph/s) |
| Deceleration | 1.1 m/s2 (2.5 mph/s) (service) 1.3 m/s2 (2.9 mph/s)(emergency) |
| Electric system(s) | 1,500 V DC overhead catenary |
| Current collector(s) | Pantograph |
| Safety system(s) | ATC and ATO |
| Track gauge | Central guideway with rubber tires |
The Sapporo Municipal Subway 9000 series (札幌市交通局 9000形) is a DC electric multiple unit (EMU) rubber-tyred metro train type operated by Sapporo Municipal Subway on the Tōhō Line in the city of Sapporo, Japan, since 8 May 2015.[1]
Design
The trains are built by Kawasaki Heavy Industries in Kobe and have aluminium bodies.[2]
A single-arm pantograph on car 9201, May 2015
Formations
The 9000 series trains are formed as four-car sets as shown below, consisting of two motored intermediate cars and two non-powered driving trailer cars.[3][4] The Tc1 car is at the Sakaemachi end.[3]
| Car No. | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| Designation | Tc1 | M1 | M2 | Tc2 |
| Numbering | 9100 | 9200 | 9300 | 9800 |
| Weight (t) | 25.1 | 27.8 | 27.7 | 25.3 |
| Capacity (total/seated) | 121/40 | 137/48 | 121/40 | |
The two intermediate motor cars each have one single-arm pantograph.[3]
Interior
Passenger accommodation consists of longitudinal bench seating, with a wheelchair space in each car.[3]
Priority seating and wheelchair space at the end of a car in January 2016
LCD passenger information displays above the doorways, May 2015
History
The order for the fleet of new trains was placed with Kawasaki Heavy Industries in April 2013 at a cost of approximately 12 billion yen (excluding bogies and other equipment ordered separately),[5] and the first trainset was unveiled to the media in November 2014.[2] It entered revenue service on 8 May 2015.[1]
References
- 1 2 札幌市営地下鉄東豊線で9000形が営業運転を開始 [9000 series enters service on Sapporo Municipal Subway Toho Line]. Japan Railfan Magazine Online (in Japanese). Japan: Koyusha Co., Ltd. 9 May 2015. Retrieved 9 May 2015.
- 1 2 3 4 札幌市交通局 9000形 [Sapporo Municipal Subway 9000 series]. Japan Railfan Magazine (in Japanese). Vol. 55, no. 650. Japan: Koyusha Co., Ltd. June 2015. pp. 82–84.
- ↑ 私鉄車両編成表2021 [Private Railway Vehicle Organization Table 2021] (in Japanese). Japan: Kotsu Shimbunsha. 2021. p. 4. ISBN 9784330032214.
- ↑ 札幌市交通局向け地下鉄電車を受注 [Order received for subway trains for Sapporo Municipal Subway]. News release (in Japanese). Japan: Kawasaki Heavy Industries, Ltd. 22 May 2013. Retrieved 10 May 2015.
External links
- Official press release (31 October 2014) (in Japanese)
