RER E
RER RER E

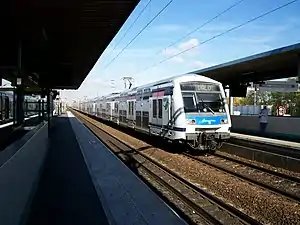

RER E at Val de Fontenay station
Overview
Termini
Stations22
Service
TypeRapid transit/commuter rail
SystemRéseau Express Régional
Operator(s)SNCF
Rolling stockZ 22500, Z 50000, Z 58000
Ridership60 million journeys per year
History
Opened14 July 1999
(last extension in 2003)
Technical
Line length52.3 km (32.5 mi)
Track gauge1,435 mm (4 ft 8+1⁄2 in) standard gauge
Route map

Geographically accurate map of the RER E

RER E is one of the five lines in the Réseau Express Régional (English: Regional Express Network), a hybrid commuter rail and rapid transit system serving Paris and its suburbs. The 52.3-kilometre (32.5 mi) RER E line travels between Paris and eastern suburbs, with all trains serving the stations in central Paris, before branching out towards the ends of the line.

The line runs from the western terminus Haussmann–Saint-Lazare (E1) to the eastern termini Chelles–Gournay (E2) and Tournan (E4). It is operated by SNCF.

Originally referred to as the Est Ouest Liaison Express or EOLE (English: East West Express Link), RER E is the newest line in the system opening in 1999, with the extension in 2003, and further extensions to the west currently under construction (in 2024 to Nanterre-La Folie, in 2026 to Mantes-la-Jolie).[2]

History

Train arriving at Haussmann–Saint-Lazare on the RER E.
Station Magenta on the RER E

RER E opened on 14 July 1999 between Haussmann – Saint-Lazare and Chelles–Gournay. The construction included a 2 km (1.2 mi) tunnel between Haussmann – St-Lazare and Magenta (which serves Gare de l'Est and Gare du Nord).

The line was first extended with a new branch from Noisy-le-Sec to Villiers-sur-Marne – Le Plessis-Trévise on 30 August 1999. This branch was extended to Tournan on 14 December 2003.

On 13 December 2015, Rosa-Parks station opened in the 19th arrondissement of Paris.[3]

Extension

Map of the extension to Mantes-la-Jolie

RER E is to be extended from Haussmann – Saint-Lazare to La Défense, from where it will take over the branch of RER A to Nanterre, Sartrouville and Poissy. It would then take over a section of SNCF tracks (currently carrying Transilien J) to reach Mantes-la-Jolie. Partial revenue service, from Haussmann - Saint-Lazare to Nanterre - La Folie, was expected to begin by the end of 2022, then full service in 2024.,[4] but has since been delayed to 2024 and 2026, respectively.

An eight-kilometre (5.0 mi) tunnel will be dug between Haussmann–St-Lazare and La Défense. An intermediate station at Porte Maillot will offer a transfer to RER C. The extension is expected to reduce the load on central sections of RER B (between Gare du Nord and Châtelet) and RER A (between La Défense and Auber) by 10–15%. Additionally, transfers will be shifted away from current transfer hub Châtelet in the city center.[5]

List of RER E stations

BranchStationZoneServed municipalitiesConnections
E1Haussmann – Saint-Lazare1Paris Paris MétroParis Métro Line 3Paris Métro Line 9Paris Métro Line 12Paris Métro Line 13Paris Métro Line 14 RERRER A TransilienTransilien Line J (Paris-Saint-Lazare)Transilien Line L (Paris-Saint-Lazare) SNCF TER
Bus 20 21 22 24 26 27 28 29 32 43 53 66 80 81 94 95
Noctilien N01 N02 N15 N16 N51 N52 N53 N150 N151 N152 N153 N154
Magenta1Paris Paris MétroParis Métro Line 2Paris Métro Line 4Paris Métro Line 5 RERRER BRER D TransilienTransilien Line H (Paris-Nord)Transilien Line K (Paris-Nord) SNCF Eurostar Thalys TGV TER
Bus 26 30 31 38 39 42 43 46 48 54 56 65 302 350 OpenTour Noctilien N01 N02 N14 N43 N44 N140
Rosa Parks1Paris Tramways in Île-de-FranceÎle-de-France tramway Line 3b Bus 35 54 60 239 ferry/water interchange Traverse Ney-Flandre Noctilien N140
Pantin2Pantin Bus 151 170 249 330 Noctilien N13 N41 N140
Noisy-le-Sec3Noisy-le-Sec Tramways in Île-de-FranceÎle-de-France tramway Line 1 Bus 105 143 545
E2Bondy3Bondy Tramways in Île-de-FranceÎle-de-France tramway Line 4 Bus 303 346 TUB Bus interchange TRA 616
Le Raincy – Villemomble – Montfermeil4Le Raincy, Villemomble Bus 114 Bus interchange TRA 601, 602, 603, 605
Gagny4Gagny Bus 121 221 303 Bus interchange TRA 604, 623 Noctilien N23
Le Chénay – Gagny4Gagny Bus 214 Bus interchange TRA 642 Bus interchange Les Autobus du Fort 701 Noctilien N23
Chelles–Gournay4Chelles, Gournay-sur-Marne TransilienTransilien Line P (Paris-Est) Bus 113 213 Bus interchange Apolo7 A, B, C, E, F, 13 Bus interchange TRA 613 Bus interchange Seine-et-Marne Express 19 Noctilien N23 N141
E4Rosny – Bois-Perrier3Rosny-sous-Bois Bus 102 116 121 145 Bus interchange Titus 2 Noctilien N142
Rosny-sous-Bois3Rosny-sous-Bois Bus 116 118 143 Bus interchange Titus 1, 2, 3, 4 Noctilien N142
Val de Fontenay3Fontenay-sous-Bois RERRER A Bus 116 118 122 124 301 524 Bus interchange Les Autobus du Fort 702 Noctilien N34 N71 N142
Nogent – Le Perreux3Nogent-sur-Marne, Le Perreux-sur-Marne Bus 114 116 120 210 317 Noctilien N35 N71 N142
Les Boullereaux – Champigny3Champigny-sur-Marne Bus 106 110 116 Noctilien N130
Villiers-sur-Marne – Le Plessis-Trévise4Villiers-sur-Marne, Le Plessis-Trévise Bus 106 110 206 207 210 306 308 Noctilien N33 N130
Les Yvris – Noisy-le-Grand4Noisy-le-Grand Bus 310 312 320
Émerainville – Pontault-Combault5Émerainville, Pontault-Combault Bus 206 212 421 Bus interchange SITUS 2 Bus interchange Seine-et-Marne Express 18 Bus interchange Sit'bus A, B, C, D Noctilien N142
Roissy-en-Brie5Roissy-en-Brie Bus interchange Sit'bus 501A, A, D, E Noctilien N142
Ozoir-la-Ferrière5Ozoir-la-Ferrière Bus interchange Arlequin 5, 14 Bus interchange Stigo 11, 201 Bus interchange PEP'S 13 Bus interchange Seine-et-Marne Express 16 Bus interchange Sit'bus A Noctilien N142
Gretz-Armainvilliers5Gretz-Armainvilliers Bus interchange Sol'R 3, 121 Bus interchange Stigo 11, 18 Noctilien N142
Tournan5Tournan-en-Brie TransilienTransilien Line P (Paris-Est) Bus interchange Sol'R 3, 7, 21, 28, 121, 209, 309, 409 Bus interchange Stigo 11, 18 Bus interchange Procars 14 Bus interchange Yerres – Brie Centrale 23 Bus interchange Darche-Gros 30 Bus interchange PEP'S 32 Noctilien N142

Map

Geographically accurate path of the RER E

Operation

Names of services

Like all the other RER lines, each train is named after the route it takes. The first letter designates the destination, the second indicates whether the train will call at every station or not.

Regular names of services of trains departing from Paris are, among others, TAVA (stops at Magenta, Rosa Parks, Pantin, Noisy-le-Sec, Val de Fontenay, and all stations from Villiers-sur-Marne to Tournan), VOHE (stops at every station, all the way to Villiers-sur-Marne), COHI (stops at every station all the way to Chelles–Gournay).

See also

Rolling stock

Current fleet

Trainset Class Image Type Top speed Carriages Number Routes operated Built
mph km/h
MI2N Z22500
EMU 86 140 5 53
  • all branches of the RER E line
  • Haussmann - Saint-Lazare ↔ Chelles - Gournay
  • Haussmann - Saint-Lazare ↔ Villiers-sur-Marne - Le Plessis-Trévise
  • Haussmann - Saint-Lazare ↔ Tournan
 1999
Bombardier

Francilien

 Z50000 86 140 8 64 (equipment in common operation with line P)
  • all branches of the RER E line
  • Haussmann - Saint-Lazare ↔ Chelles - Gournay
  • Haussmann - Saint-Lazare ↔ Villiers-sur-Marne - Le Plessis-Trévise
  • Haussmann - Saint-Lazare ↔ Tournan
 2009-
RER NG Z58000 86 140 6 14
  • only one branche of the RER E line
  • Haussmann - Saint-Lazare ↔ Chelles - Gournay
 2018-
