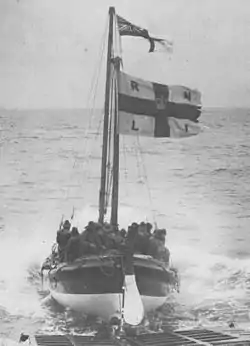

HF Bailey ON670
Class overview
NameNorfolk and Suffolk-class
Operators Royal National Lifeboat Institution
General characteristics - motor lifeboats
Displacement14-17 tons
Length46 ft 6 in (14.17 m)
Beam12 ft 9 in (3.89 m)
Installed power
  • ON 432: 32 bhp Blake 4SA 4-cyl. petrol
  • ON 663: 60 bhp Tyler D.1 4-cyl. petrol
  • ON 670: 80bhp Weyburn DE6 6-cyl. petrol
  • ON 691: 80bhp White DE6 6-cyl. petrol
PropulsionSingle screw
Speed8 knots (9.2 mph; 15 km/h)
Range~115 nautical miles (132 mi; 213 km)
Crew13

Norfolk and Suffolk-class lifeboats were lifeboats operated by the Royal National Lifeboat Institution (RNLI) from stations around the coasts of the United Kingdom and Ireland. They were able to operate further from shore and around the sandbanks common off East Anglia.

Description

Norfolk and Suffolk class of non-self righting lifeboats were designed to operate further from shore and specifically around East Anglia. Originally a pulling and sailing design, in 1906 the Walton-on-the-Naze's RNLB James Stevens No. 14 (ON 432), built in 1900, was fitted with a 32 bhp petrol engine and served at the station until 1928. Originally, the engines in motor lifeboats were regarded as an auxiliary and they retained their full sailing rig. The conversion of James Stevens No. 14 was deemed a success and a further number of new motor lifeboats were built for service at East Anglian stations.

Pulling & Sailing lifeboats

ON[lower-alpha 1] Name Built Builder Description In service Principal Station Disposal
Solebay 40-foot (12 m) 1841-1858 Southwold
29 Harriett / London Coal Exchange No. 1 40-foot (12 m) 1858-1893 Southwold
270 Margaret 44 ft (13 m)  ?

1899-1901

 Winterton

Albeburgh
304 Aldeburgh 1890 Mr. Critten of [Great] Yarmouth 44 ft 3 in (13.49 m)14 oars, double banked[1] 1890-1899 Albeburgh Capsized with the loss of seven of the 18 crew.
353 Alfred Corry 1893 Beeching Brothers of Great Yarmouth 44-foot (13 m), with two-masts and 16 oars.[2][3] 1893-1919 Southwold sold 1919
Bolton 42-foot (13 m) 1918-1925 Southwold
430 James Stevens No. 9[4] 1899 38-foot (12 m), 12-foot (3.7 m) beam inside, 14-foot (4.3 m) outside, carried a crew of 15. 1899-1909 Southend-on-Sea
432 James Stevens No.14 1900 Thames Ironworks, Blackwall 43-foot (13 m)
Engine fitted 1906		 1900 - 1928 Walton and Frinton sold June 1928
482 City of Westminster 1902 Thames Iron Works Company 46 ft (14 m)12 oars, double banked[5] 1902 - 1928 Aldeburgh

Motor lifeboats

ON Name Built Builder In service Principal Station Disposal
432 James Stevens No.14[6] 1900 Thames Ironworks, Blackwall 1900–1928 Walton and Frinton sold June 1928
656 Hearts of Oak[7]
length - 40-foot (12 m)
beam - 10-foot (3.0 m)		 1918 Summers and Payne, Southampton
completed by S. E. Saunders, Cowes		 1918–1929
1929–1934		 Palling no 2
Relief fleet
663 John and Mary Meiklam Of Gladswood (1921)
Agnes Cross (1921–1952)		 1921 S. E. Saunders, Cowes 1921
1921–1939
1939–1952		 Great Yarmouth and Gorleston
Lowestoft
Relief fleet		 Sold October 1952
670 H.F. Bailey (1923–1924)
John and Mary Meiklam of Gladswood (1924–1952)		 1923 J. Samuel White, Cowes 1923–1924
1924–1939
1939–1952		 Cromer No.1
Great Yarmouth and Gorleston
Relief fleet		 Sold October 1952
691 Mary Scott 1925 J. Samuel White, Cowes 1925–1940
1940–1953		 Southwold
Relief fleet		 Sold March 1953
  1. ↑ ON is the RNLI's Official Number of the boat.
