The Douady rabbit is the filled Julia set whose parameter is near the center of one of the period three bulbs of the Mandelbrot set for a complex quadratic map. It is named after Adrien Douady, a French mathematician.

An example of a Douady rabbit. The colors show the number of iterations to escape.

Formula

The Douady rabbit is generated by iterating the Mandelbrot set map ${\displaystyle z=z^{2}+c}$ on the complex plane, with ${\displaystyle c}$ fixed to lie in the period three bulb off the main cardioid and ${\displaystyle z}$ ranging over the plane.

The pixels in the image generated are then colored to show whether a particular value of ${\displaystyle z}$ on the iteration of the map remains bounded.

Mandelbrot and filled Julia sets

There are two planes associated with the complex quadratic map ${\displaystyle {\mathcal {M}}}$. One of these, the ${\displaystyle z}$ (or ${\displaystyle w}$) plane, is called the mapping plane since ${\displaystyle {\mathcal {M}}}$ sends this plane onto itself. The other, the ${\displaystyle \gamma }$ (or ${\displaystyle \mu }$) plane, is called the control plane.

The nature of what happens in the mapping plane under repeated application of ${\displaystyle {\mathcal {M}}}$ depends on where ${\displaystyle \gamma }$ (or ${\displaystyle \mu }$) is in the control plane. The filled Julia set consists of all points in the mapping plane whose images remain bounded under indefinitely repeated applications of ${\displaystyle {\mathcal {M}}}$. The Mandelbrot set consists of those points in the control plane such that the associated filled Julia set in the mapping plane is connected.

Figure 1 shows the Mandelbrot set when ${\displaystyle \gamma }$ is the control parameter, and Figure 2 shows the Mandelbrot set when ${\displaystyle \mu }$ is the control parameter. Since ${\displaystyle z}$ and ${\displaystyle w}$ are affine transformations of one another (a linear transformation plus a translation), the filled Julia sets look much the same in either the ${\displaystyle z}$ or ${\displaystyle w}$ planes.

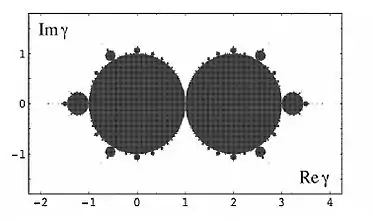

Figure 1: The Mandelbrot set in the ${\displaystyle \gamma }$ plane

Figure 2: The Mandelbrot set in the ${\displaystyle \mu }$ plane

Description

Douady rabbit in an exponential family

Lamination of the rabbit Julia set

Representation of the dynamics inside the rabbit

The Douady rabbit is most easily described in terms of the Mandelbrot set as shown in Figure 1. In this figure, the Mandelbrot set superficially appears as two back-to-back unit disks with sprouts or buds. Consider the sprouts at the one- and five-o'clock positions on the right disk or the sprouts at the seven- and eleven-o'clock positions on the left disk. When ${\displaystyle \gamma }$ is within one of these four sprouts, the associated filled Julia set in the mapping plane is a Douady rabbit. For these values of ${\displaystyle \gamma }$, it can be shown that ${\displaystyle {\mathcal {M}}}$ has ${\displaystyle z=0}$ and one other point as unstable (repelling) fixed points, and ${\displaystyle z=\infty }$ as an attracting fixed point. Moreover, the map ${\displaystyle {\mathcal {M}}^{3}}$ has three attracting fixed points. The Douady rabbit consists of the three attracting fixed points ${\displaystyle z_{1}}$, ${\displaystyle z_{2}}$, and ${\displaystyle z_{3}}$ and their basins of attraction.

For example, Figure 3 shows the Douady rabbit in the ${\displaystyle z}$ plane when ${\displaystyle \gamma =\gamma _{D}=2.55268-0.959456i}$, a point in the five-o'clock sprout of the right disk. For this value of ${\displaystyle \gamma }$, the map ${\displaystyle {\mathcal {M}}}$ has the repelling fixed points ${\displaystyle z=0}$ and ${\displaystyle z=.656747-.129015i}$. The three attracting fixed points of ${\displaystyle {\mathcal {M}}^{3}}$ (also called period-three fixed points) have the locations

${\displaystyle z_{1}=0.499997032420304-(1.221880225696050\times 10^{-6})i{\;}{\;}{\mathrm {(red)} },}$

${\displaystyle z_{2}=0.638169999974373-(0.239864000011495)i{\;}{\;}{\mathrm {(green)} },}$

${\displaystyle z_{3}=0.799901291393262-(0.107547238170383)i{\;}{\;}{\mathrm {(yellow)} }.}$

The red, green, and yellow points lie in the basins ${\displaystyle B(z_{1})}$, ${\displaystyle B(z_{2})}$, and ${\displaystyle B(z_{3})}$ of ${\displaystyle {\mathcal {M}}^{3}}$, respectively. The white points lie in the basin ${\displaystyle B(\infty )}$ of ${\displaystyle {\mathcal {M}}}$.

The action of ${\displaystyle {\mathcal {M}}}$ on these fixed points is given by the relations ${\displaystyle {\mathcal {M}}z_{1}=z_{2}}$, ${\displaystyle {\mathcal {M}}z_{2}=z_{3}}$, and ${\displaystyle {\mathcal {M}}z_{3}=z_{1}}$.

Corresponding to these relations there are the results

${\displaystyle {\mathcal {M}}B(z_{1})=B(z_{2}){\;}{\mathrm {or} }{\;}{\mathcal {M}}{\;}{\mathrm {red} }\subseteq {\mathrm {green} },}$

${\displaystyle {\mathcal {M}}B(z_{2})=B(z_{3}){\;}{\mathrm {or} }{\;}{\mathcal {M}}{\;}{\mathrm {green} }\subseteq {\mathrm {yellow} },}$

${\displaystyle {\mathcal {M}}B(z_{3})=B(z_{1}){\;}{\mathrm {or} }{\;}{\mathcal {M}}{\;}{\mathrm {yellow} }\subseteq {\mathrm {red} }.}$

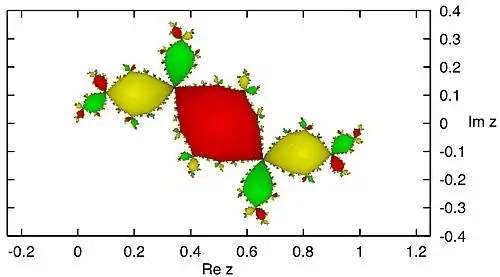

Figure 3: Douady rabbit for ${\displaystyle \gamma =2.55268-0.959456i}$ or ${\displaystyle \mu =0.122565-0.744864i}$

As a second example, Figure 4 shows a Douady rabbit when ${\displaystyle \gamma =2-\gamma _{D}=-.55268+.959456i}$, a point in the eleven-o'clock sprout on the left disk (${\displaystyle \mu }$ is invariant under this transformation). This rabbit is more symmetrical in the plane. The period-three fixed points then are located at

${\displaystyle z_{1}=0.500003730675024+(6.968273875812428\times 10^{-6})i{\;}{\;}({\mathrm {red} }),}$

${\displaystyle z_{2}=-0.138169999969259+(0.239864000061970)i{\;}{\;}({\mathrm {green} }),}$

${\displaystyle z_{3}=-0.238618870661709-(0.264884797354373)i{\;}{\;}({\mathrm {yellow} }),}$

The repelling fixed points of ${\displaystyle {\mathcal {M}}}$ itself are located at ${\displaystyle z=0}$ and ${\displaystyle z=1.450795+0.7825835i}$. The three major lobes on the left, which contain the period-three fixed points ${\displaystyle z_{1}}$,${\displaystyle z_{2}}$, and ${\displaystyle z_{3}}$, meet at the fixed point ${\displaystyle z=0}$, and their counterparts on the right meet at the point ${\displaystyle z=1}$. It can be shown that the effect of ${\displaystyle {\mathcal {M}}}$ on points near the origin consists of a counterclockwise rotation about the origin of ${\displaystyle \arg(\gamma )}$, or very nearly ${\displaystyle 120^{\circ }}$, followed by scaling (dilation) by a factor of ${\displaystyle |\gamma |=1.1072538}$.

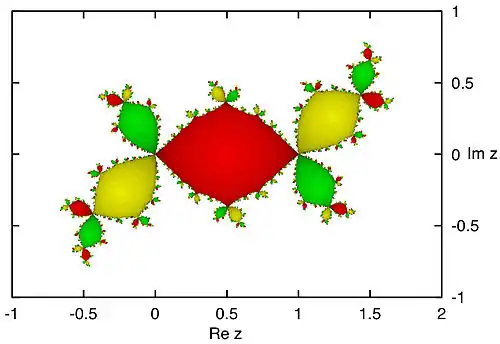

Figure 4: Douady rabbit for ${\displaystyle \gamma =-0.55268+0.959456i}$ or ${\displaystyle \mu =0.122565-0.744864i}$

Forms of the complex quadratic map

There are two common forms of ${\displaystyle {\mathcal {M}}}$. The first, also called the complex logistic map, is written as

${\displaystyle z_{n+1}={\mathcal {M}}z_{n}=\gamma z_{n}\left(1-z_{n}\right),}$

where ${\displaystyle z}$ is a complex variable and ${\displaystyle \gamma }$ is a complex parameter. The second common form is

${\displaystyle w_{n+1}={\mathcal {M}}w_{n}=w_{n}^{2}-\mu .}$

Here ${\displaystyle w}$ is a complex variable and ${\displaystyle \mu }$ is a complex parameter. The variables ${\displaystyle z}$ and ${\displaystyle w}$ are related by the equation

${\displaystyle z=-{\frac {w}{\gamma }}+{\frac {1}{2}},}$

and the parameters ${\displaystyle \gamma }$ and ${\displaystyle \mu }$ are related by the equations

${\displaystyle \mu =\left({\frac {\gamma -1}{2}}\right)^{2}-{\frac {1}{4}}\quad ,\quad \gamma =1\pm {\sqrt {1+4\mu }}.}$

Note that ${\displaystyle \mu }$ is invariant under the substitution ${\displaystyle \gamma \to 2-\gamma }$.

Variants

A twisted rabbit^[1] is the composition of a rabbit polynomial with ${\displaystyle n}$ powers of Dehn twists about its ears.^[2]

The corabbit is the symmetrical image of the rabbit. Here parameter ${\displaystyle c\approx -0.1226-0.7449i}$. It is one of 2 other polynomials inducing the same permutation of their post-critical set are the rabbit.

Twisted rabbit problem

In the early 1980s, Hubbard posed the so-called twisted rabbit problem, a polynomial classification problem. The goal is to determine Thurston equivalence types of functions of complex numbers that usually are not given by a formula (these are called topological polynomials):^[7]

• given a topological quadratic whose branch point is periodic with period three, determining which quadratic polynomial it is Thurston equivalent to
• determining the equivalence class of twisted rabbits, i.e. composita of the rabbit polynomial with nth powers of Dehn twists about its ears.

The problem was originally solved by Laurent Bartholdi and Volodymyr Nekrashevych^[8] using iterated monodromic groups. The generalization of the problem to the case where the number of post-critical points is arbitrarily large has been solved as well.^[9]

Gallery

•
  Gray levels indicate the speed of convergence to infinity or to the attractive cycle
•
  boundaries of level sets
•
  binary decomposition
•
•
  with spine
•
  with external rays
•
  Multibrot-4 Douady rabbit
•
  A Douady rabbit on a red background
•
  A chain of Douady rabbits
