FD
Type and origin Power type Steam Builder Voroshilovgrad Locomotive Factory[1] Build date 1931-41, conversion to standard gauge : ~1958 [1] Total produced exported to China : 1054[1] Rebuilder China Railways Rebuild date 1958-1960 Number rebuilt 1054
Specifications Configuration: ​  • Whyte 2-10-2 Gauge 1,435 mm (4 ft 8+1⁄2 in) Driver dia. 1,500 mm (59.06 in) Length total: ≈29.07 m (95 ft 4 in) (loco + tender) Firebox:  • Firegrate area 7.03 m2 (75.7 sq ft) Cylinders 2, outside Valve gear Walschaerts
Performance figures Maximum speed 85 km/h (53 mph)
Career Number in class 1054 Retired 1967-1985 Preserved 3 Scrapped 1967-1989 Disposition Most Scrapped in China (3 preserved) some sold to operate in North Korea

The China Railways FD (YH class ; later FX Class) is a class of locomotives which were Russian 2-10-2 steam locomotives of the Russian FD locomotive type imported from Russia and regauged for use in China. Some of them were sold to the Korean State Railway in North Korea between 1985 and 1997 and became the 8500 Class .

History

The FD class locomotives were imported from Russia from 1958 to provide main line freight motive power for the Chinese railways. Over 1054 units were acquired and remained in service until 1985.^[1]

When imported the class were designated YH (YouHao meaning 'friendship'), but after the breakdown of Sino-Soviet relations during the Cultural Revolution (see Sino–Soviet split) the class were renamed FX (FanXiu meaning 'anti-revisionist'). In 1971 the class were returned to the original designation 'FD' of soviet Russian origin (after the Russian Bolshevik Revolutionary and Cheka Leader Felix Dzerzhinsky).^[1]

Preservation

• FD number 1227 is preserved at the Shenyang Railway Museum.
• FD number 1653 is preserved at the Baotou West Locomotive Depot, Huhhot Railway Bureau.^[2]

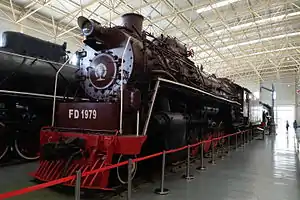

• FD number 1979 is preserved at the Beijing Railway Museum.

See also

• Russian locomotive class FD
