Timex TX5020 LCD Electronic Thermometer Teardown

Written By: Chris L
Published: 20/12/14
  • Comments: 0

Timex TX5020 LCD Electronic Thermometer Teardown

Published: 20/12/14

Teardown

Introduction

The Timex TX5020 is an electronic thermometer that can be used both indoors and outdoors. It requires only a screwdriver to take apart.

  1. 6xxFsgj1ZARTStnB
    6xxFsgj1ZARTStnB
    WHkNq1gTnfuAflHq

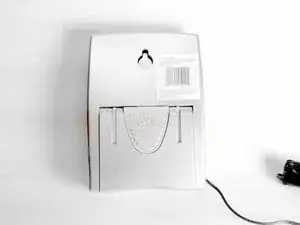

    • Here is the fully assembled thermometer.

  2. BraJOT5HFsiS2YtU

    • Slide the battery compartment cover off by applying downward and forward pressure.

  3. iFcMMdc2RkWEfELa
    iFcMMdc2RkWEfELa
    XLFyOAGOJUf3fctG

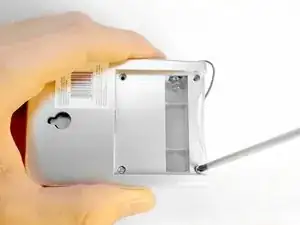

    • Loosen and remove the four screws from the back of the thermometer.

  4. 4TSIrQExKwPJLCOJ

    • Lift the back panel away from the rest of the case.

  5. 4deRDPERrMmRvXVA
    4deRDPERrMmRvXVA
    LviCxbcnoYHPQSgV

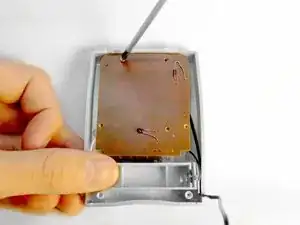

    • Remove the three screws holding the circuit board in place.

  6. BANbFMMts6WMBrAP
    BANbFMMts6WMBrAP
    vu43CNP2sFVZxJHq

    • Lift the circuit board away from the case.

    • Be careful not to pull too hard as the board is attached to the battery contacts.

  7. KInHSiCLMZxxe25v
    KInHSiCLMZxxe25v
    2ZUKCv54WcaGcKh3

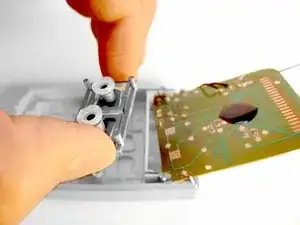

    • Remove the screen from its compartment.

    • Remove the push buttons from their compartment.

  8. TwPSuRRNmCQ4DKBn

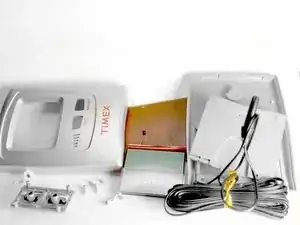

    • Here's a full view of the disassembled components (circuit board, screen, push buttons, and case).
