Introduction

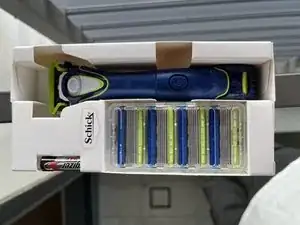

This IDES2323 Task2 teardown assignment was done by industrial design student Yuanhang Yan. The item disassembled is the Schick - Hydro 5 Groomer Kit for Men, 4-In-1 Power Trimmer. This post will go into detail about the inner workings of this Groomer Kit.
Tools
-
-

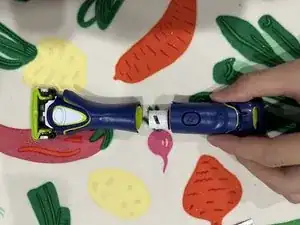

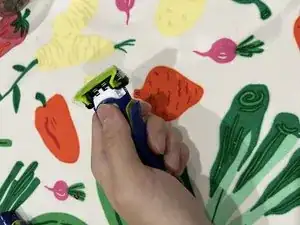

The Shaver Part has a replaceable Razor head, just press the white button on the front and the Razor head comes off automatically.
-
-
-
Open the battery compartment of the Shaver Part begins with cutting the outer wrapping of silicone along the red line with a knife.
-
After removing the silicone layer you will see the internal battery compartment structure, next you just need to use a screwdriver to press down the metal part inside the red circle to remove the battery compartment smoothly.
-
-
-

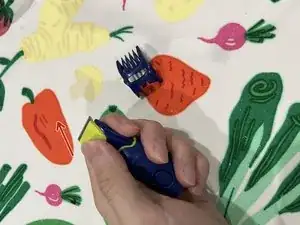

The protective part of the Trimming part simply comes off by pushing your thumb along the red line position.
-
The blade part of the Trimming part simply comes off by pushing your thumb along the red line position.
-

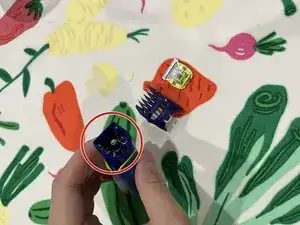

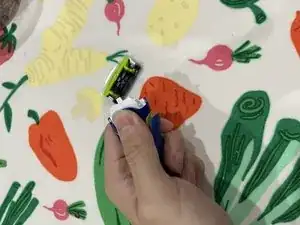

The position shown by the circle in the picture is where the output of the motor is located, and this metal bar will always make a clockwise movement.
-
-
-

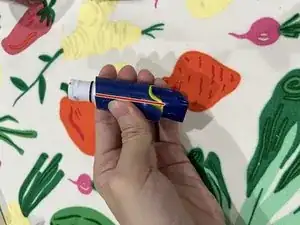

Open the Trimming Part begins with cutting the outer wrapping of silicone along the red line with a knife.
-
