Introduction
A teardown of the Nikon Coolpix 3500.
Tools
-

                  -

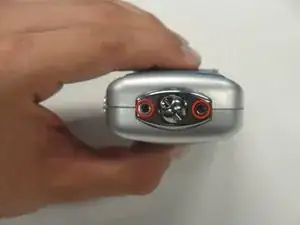

            Remove two 4.5 mm screws next to the battery slot.
-

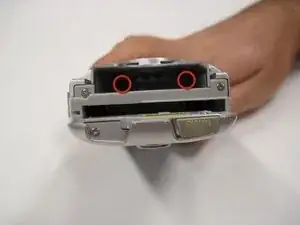

            Remove one 3 mm screw above the CF memory card slot.
-
            Remove one 4.5 mm screw next to the CF memory card slot.

-

-

                  -
            Remove the five 3.5 mm screws from the bottom of the camera.
-

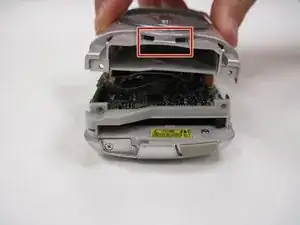

            Gently pry off the grey faceplate.

-

-

                  -

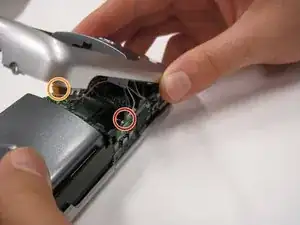

            Use a spudger to disconnect the white-capped wire at the bottom of the camera.
-
            Use a spudger to disconnect the orange-capped wire at the bottom of the camera and set the faceplate aside.

-

-

                  -

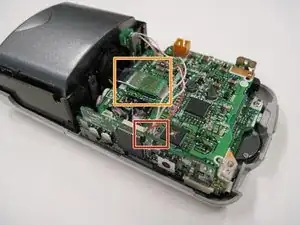

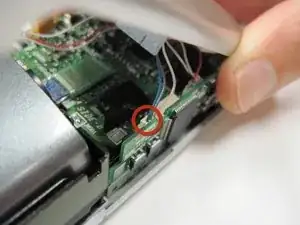

            Disconnect the grey-capped wires from the motherboard.
-
            Disconnect the blue wire attached to the green chip from the center of the motherboard.

-

-

                  -

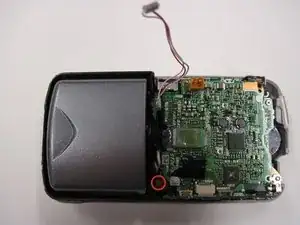

            Remove the 3.5 mm screw from the motherboard next to the rotating lens.
-

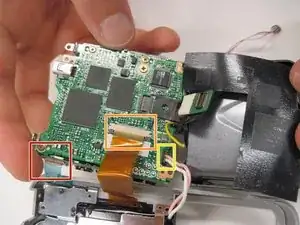

            Flip the motherboard and lens over to access the three wires on the back that connect to the LED screen.

-

-

                  -
            Disconnect the blue wire connecting the motherboard to the LED screen.
-
            Disconnect the orange wire using a spudger while pushing out horizontally.
-

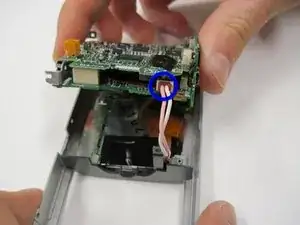

            Disconnect the red capped wire from the motherboard.
-
            Lift the motherboard and lens (still connected) out of the back case.

-

-

                  -

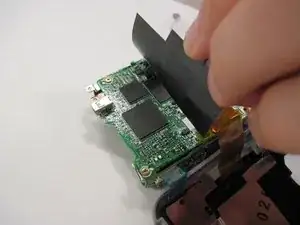

            Lift up on the black covering and remove the orange wire connecting the lens to the motherboard.

-

-

                  -
            Remove the 2.5 mm screw next to the red capped wire.
-
            Remove the two 3.4 mm screws on the back of the directional buttons.
-
            Remove the two 4.4 mm screws in the metal plate across from the orange wire.

-
