Moodo Smart Aroma Diffuser Teardown

Written By: Markus
Published: 16/10/20
  • Comments: 0

Moodo Smart Aroma Diffuser Teardown

Published: 16/10/20

Teardown

Introduction

Having a look into the Moodo Smart Aroma Diffuser.
You can also use this as a guide to replace a fan.

  1. Lff5QI1vykADOyEo
    Lff5QI1vykADOyEo
    dYraPPlZml6ClWbQ

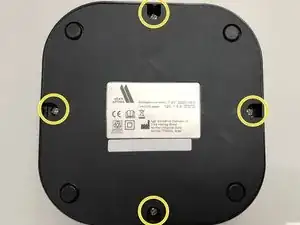

    • The device can be opened by removing the 4 Philips screws visible from the bottom

  2. BNLH52KTfQjHRjYV

    • The fan and air guidance assembly is attached to the main PCB with 2 screws.

    • Each fan has one connector for power and one for the pod sensor - these need to be disconnected from the PCB before removing the fan assembly. If you want to replace a fan, you will need to unhook the sensor cables from the sides.

    • Fans used are: 1604KL-01W-B39-B00 NMB Technologies DC Fans DC Axial Fan, 40x10mm, 5VDC, 4.2CFM

  3. LpsD14YcDYDX6MDA
    LpsD14YcDYDX6MDA
    Agkb3EEdPH2CoDjO

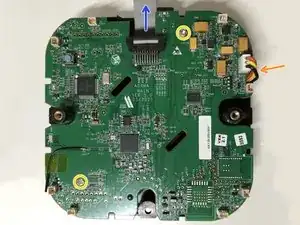

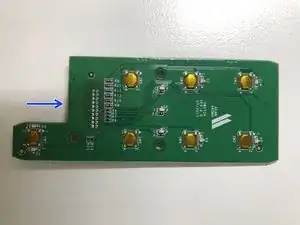

    • The main PCB connects to the control PCB with a ribbon cable.

    • It can be removed with 2 screws.

    • The 2 cell battery pack is located under the main PCB.
