Tools
-

                  -
            Powercord with a micro USB connector
-
            European plug adapter
-
            American plug adapter
-
            Harmony Hub
-
            Micro USB cable
-
            IR mini blaster

-

-

                  -

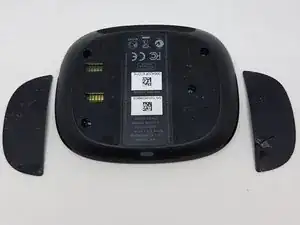

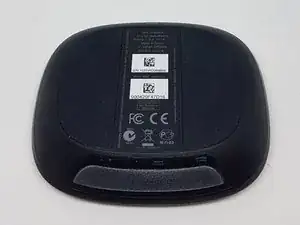

            Since we didn't find any screws we expected them to be under the soft foot pads.
-
            We easily removed them with a utility knife
-
            Now we can see 4 screws and 2 openings to the PCB.
-
            I wondered what they could be but my guess is that they're used to test the PCB.

-

-

                  -

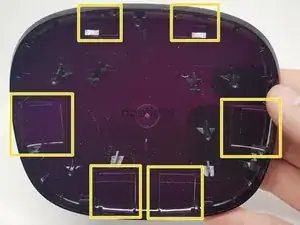

            The case opens up easily when using a utility knife around the sides
-

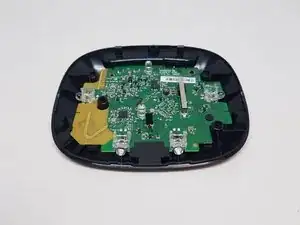

            This is a cover paper to make sure the status LED doesn't shine in the rest of the casing but just to the front

-

-

                  -

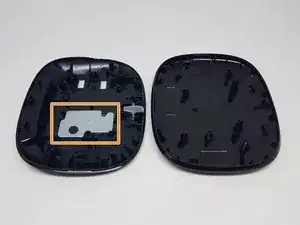

            Inside the top case we find a load to give the product a little more weight
-
            As you can see the top case is made a little thinner on the places where an IR led is present

-

-

                  -
            PCB was manufactured by a Chinese company called FCF
-

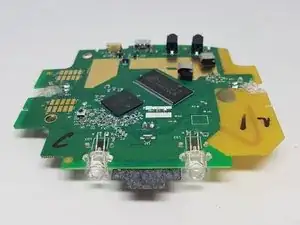

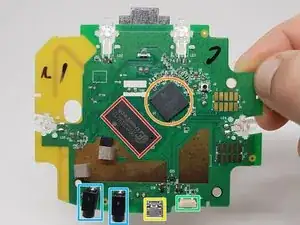

            There are 6 IR leds spread over the PCB
-

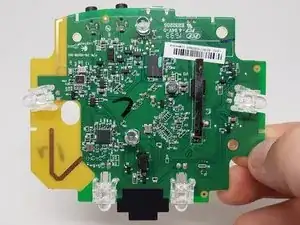

            CC2544 SoC 2.4-GHz RF Transceiver and antenna
-
            CSR8811 bluetooth chip and antenna
-
            WiFi antenna from the AR9331 on the other side of the pcb
-

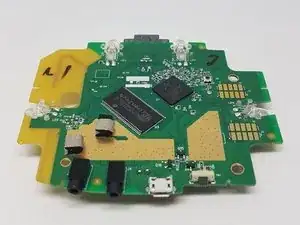

            MX25L12835F 128Mbits serial Flash memory

-

-

                  -
            EM6AB160TSE-5G 512 Mbits SDRAM
-
            AR9331 2.4 GHz 802.11b/g/n SoC for AP and Router Platforms
-

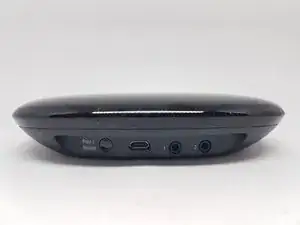

            Micro USB (data and power) - Can be used to extend this hub with a Harmony Home Hub Extender
-
            Reset/Pair button
-
            2x IR mini blaster ports (2.5mm)

-
