Casio fx-82MS Teardown

Written By: Luca Casonato
  • Comments: 1
Casio fx-82MS Teardown

Difficulty

Moderate

Steps

7

Time Required

5 minutes

Introduction

This iconic school calculator really needed to be torn apart.

  1. eJOmdeID4cQ6goVi
    eJOmdeID4cQ6goVi
    xLYHeUCcymXcotj2
    mRNd124CFq5VhYhC

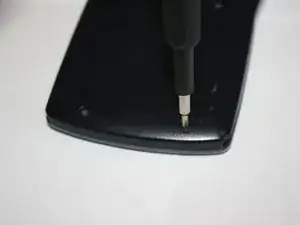

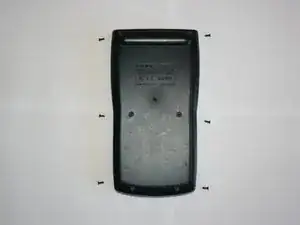

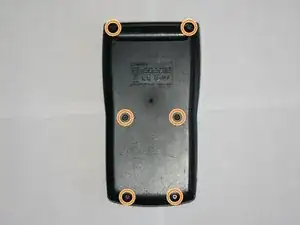

    • Remove these screws.

    • 6x Philips #0

  2. bSwJS6y36QmSLNqK
    bSwJS6y36QmSLNqK
    UjfqHCQsHr2elZNt
    OSVWfiDDJDBebI1T

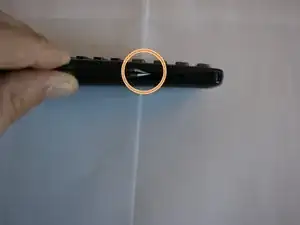

    • Put the tweezers (in their closed state) into the indentations on the side of the calculator.

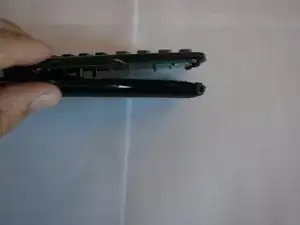

    • Slowly open the tweezers, to split the calculator into two halves.

    • On certain build batches of this calculator, glue was used to better hold the halves together. You might have to use a card to split the two pieces.

  3. 3CmjeFXsQrtPZaYB
    3CmjeFXsQrtPZaYB
    OWNNBsY6mKYZLrkt

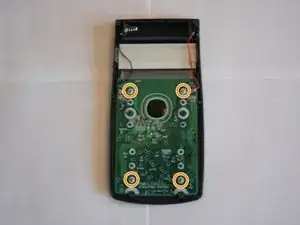

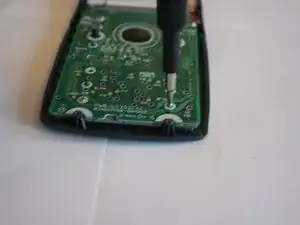

    • Remove these screws:

    • 4x Philips #0

  4. CwTIvMFIY6mZWs1C
    CwTIvMFIY6mZWs1C
    ZFWHCeMZ2aZiT4vE

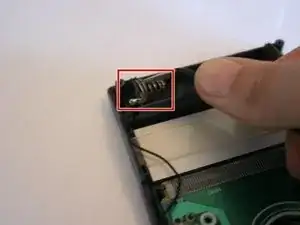

    • Use a pair of tweezers to pull the connector out of its holder.

    • Use a screwdriver to lever the connector out of its housing.

  5. Gswy4lR2FV2NMO3T
    Gswy4lR2FV2NMO3T
    uRoM2GE5I1db1B4B
    LPw3uPB3KuYdSjvd

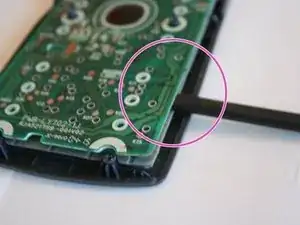

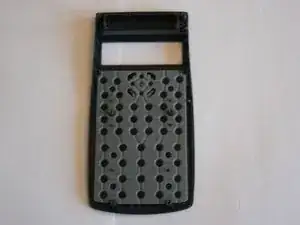

    • Insert a spudger in between the PCB and the rubber button holder.

    • Carefully remove the PCB and make sure not to damage the LCD ribbon cable.

  6. BxKLkMZg4vBTdYlt
    BxKLkMZg4vBTdYlt
    a3Pttf44NrwLVFwT
    uwdSl3DrZWqutdrI

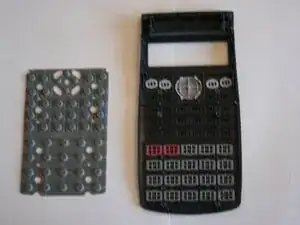

    • Peel off the rubber button holder starting in the top left corner.

  7. hc1IBmGFoWUlPGGY
    hc1IBmGFoWUlPGGY
    C3Q3LFGIngQdX3O2

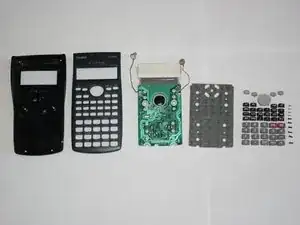

    • Back part of the case.

    • Front face of the case.

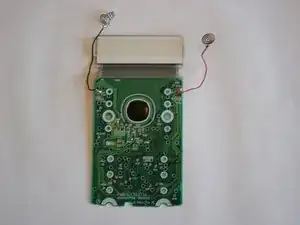

    • PCB with LCD and battery terminals.

    • Rubber button holder.

    • Buttons.
