Introduction
Continuing in my fascination with Quick Charge 2.0 based chargers, this is the second teardown of the fast charge series.
Tools
-

                  -

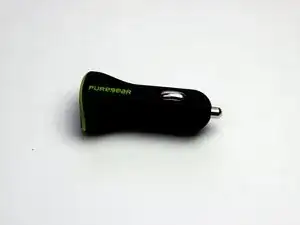

            PureGear's Extreme USB Car Charger is an elegant cigarette lighter car charger with a smooth, matte outer casing.
-
            This charger is able to charge devices with Qualcomm Quick Charge 2.0 compatible processors up to 4 times faster.
-
            The adapter is rated at 12W with 5V/2.4A for Quick Charge compatible devices and 5V/1A for all others.
-
            The charger includes:
-
            USB adapter
-
            LED to indicated status of charge

-

-

                  -
            Just like most car chargers, the case does not have an obvious entry point.
-
            In order to get into the inner working, we will need to use our trusty plastic opening tool to pry off the lid to the charger.
-

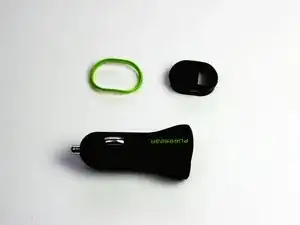

            The lid is easy enough to remove and the green rim slides right out as well.

-

-

                  -

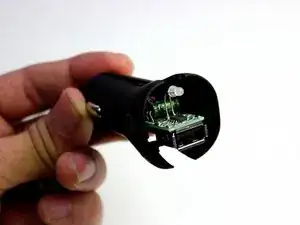

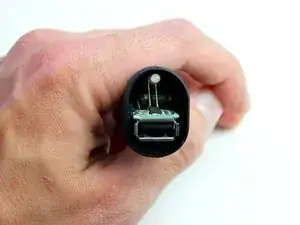

            Now we get out first glimpse at the circuitry that allows our Quick Charge 2.0 compatible devices to charge...well quick.
-
            From here we can see:
-
            USB adapter
-
            LED that shows charge status
-
            A big capacitor
-
            Some USB chip (assuming its proximity to the USB adapter)

-

-

                  -
            To separate the last part of the outer shell, we need to apply some pressure from with the vice grip pliers.
-
            Squeezing the shell across the seem causes the connecting tabs to separate enough for us to pry them apart.
-

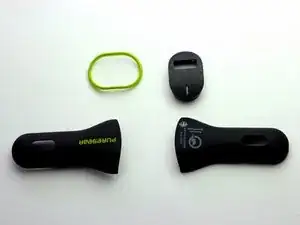

            Inside the shell are three metal leads that fell out when the shell pieces separated.

-

-

                  -

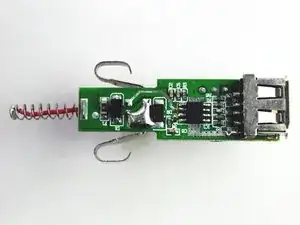

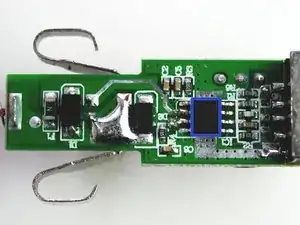

            Finally we can see what makes this charger tick and It seems that there are two important chips at work here:
-
            Active-Semi ACT4533C DC/DC Converter
-
            Power Integrations CHY100D-TL Battery Management Charger Interface
-
            These two chips in tandem make this CLA possible with so few parts, including:
-
            a couple resistors and capacitors
-
            an inductor
-
            a fuse
-
            and two diodes

-

-

                  -
            PureGear Extreme USB Car Charger Repairability Score: 7 out of 10 (10 is easiest to repair)
-
            It was very easy to remove the lid of the casing
-
            There are few parts to disassemble
-
            There was not an obvious way to separate the two halves of the outer casing
-
            The charger reassembled very easily without any need for repair
-
            It's amazing how PureGear was able to make a Quick Charge 2.0 compatible charger with so few parts.

-
