Canon Ivy 2 Teardown

Written By: ben Schultz
Published: 14/04/24
  • Comments: 0

Canon Ivy 2 Teardown

Published: 14/04/24

Teardown

Introduction

First Open The Divices door where you add new Photo paper.

There you will find The First 3 Screws.

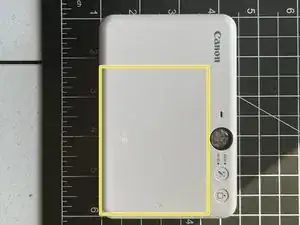

  1. klRWbPeI16QlOOrL
    klRWbPeI16QlOOrL
    WPiiIZK6OZ2QEVtd
    VMtUFtC2cFwhEpOb

    • Canon ivy 2 Not +2

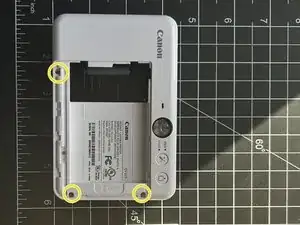

    • 1. Unscrew The 3 in the back with 00 pillips.

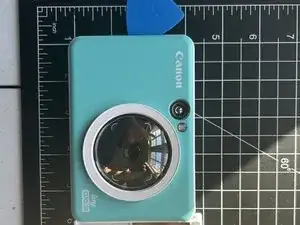

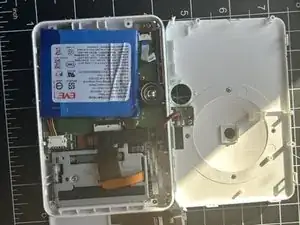

  2. XDAKQKjCqPcnrNQE
    XDAKQKjCqPcnrNQE
    aQbWjTfQMvksNTlS
    QWe6VnGsHBJoSPpE

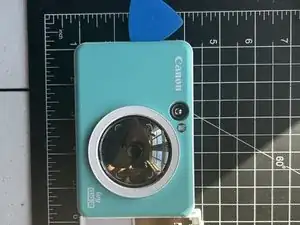

    • 2. flip to the front side and use a plastic spudger or pick and gently pry the front cover off.

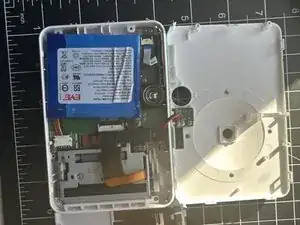

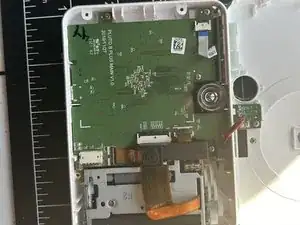

  3. q43UrkAtqCqvUHHv
    q43UrkAtqCqvUHHv
    bonF6hARh2WTJsuG

    • 3. pop-out battery.

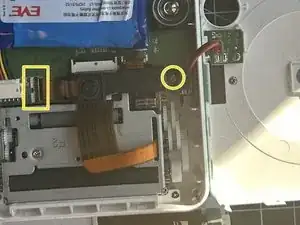

  4. gXYGgdxifXUfBUNs
    gXYGgdxifXUfBUNs
    TX6rRYlyC5fo1kWV

    • 4. Undo 8mp camera.

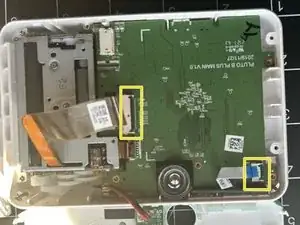

  5. KvuvLGArTKTHLgTB

    • 5. Disconnect the rest of ribbon cables

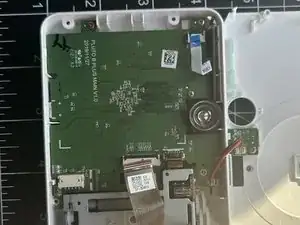

  6. YxUkT2pfuTGjQ2YZ
    YxUkT2pfuTGjQ2YZ
    lUObYKUTyqQBewac

    • 6. Unscrew main board.

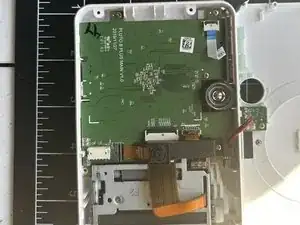

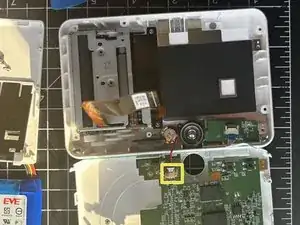

  7. SSRxTh4ioDDmDvBh
    SSRxTh4ioDDmDvBh
    UDddRHprmB2yFie1
    PZmrgDTc16GkHxPu

    • 7. set aside and disconnect the cable.

  8. 2RQoGdcrjDW2mwoG

    • 8.

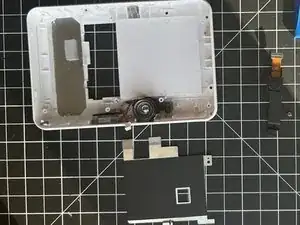

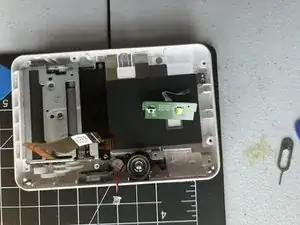

  9. QaOjioePV3rXwCfV
    QaOjioePV3rXwCfV
    53qNw2JmuZwYLFhA
    DIgE11BnN32QZAst

    • 9. Hoped this helped.

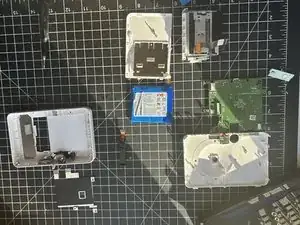

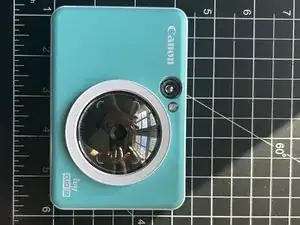

  10. eNKPs5lAhtENa1XD
    eNKPs5lAhtENa1XD
    BZY26BADihRexm35
    tuT3RMxwDFUVLJTs

    • Hope you have a nice day.
