Introduction
The scroll wheels are on the top left and right side of the iHome. The right side scroll wheel control the "set +/-" and the left side scroll wheel controls the "volume". If they do not respond, the circuit board could be corroded or broken.
Tools
-
-
Locate all screws on the back of the iHome. Each screw can be located by the arrows on the iHome.
-
Two Countersunk 9.7 mm Phillips #2 screws in the middle.
-
Two 15.9 mm Phillips #2 screws.
-
Six 13.9 mm Phillips #2 screws.
-
Some screws are located under the black sticky pads. Gently remove the black sticky pads and it will expose the screws.
-
Two 11.8 mm Phillips #2 screws.
-
-
-
Slowly tilt the bottom cover of the iHome up.
-
Disconnect the wire just by pulling on the connector gently.
-
-
-
Disconnect the final connector pin series and carefully set your lid behind the body of the iHome.
-
The tiny speaker will not be disconnected for this repair, but you can easily remove it from the lid by means of a paperclip from the outside. While not necessary, this can help prevent damage to your device.
-
-
-
Remove the seven screws that are holding the motherboard in place:
-
Six 14 mm Phillips #2 screws.
-
One 14 mm Phillips #2 screw with two rubber washers on it.
-
-
-
Carefully tilt the motherboard up from the front.
-

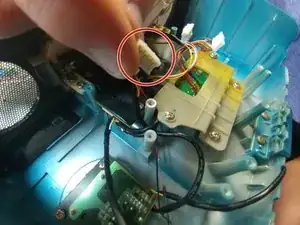

Disconnect the 8 connections by gently pulling on them. Starting from the front and work your way backwards.
-
All 8 connectors disconnected.
-
-
-
Unscrew the screws holding the speakers onto the body. One on each side:
-
Two 14.3 mm Phillips #2 screws.
-
-
-

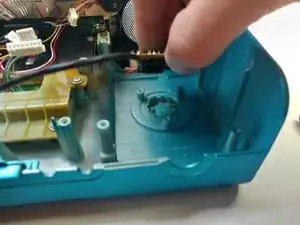

To remove the speakers from the iHome, gently lift up the back of the speaker and pull towards you. These are very secure so minor shaking may help release the speaker.
-
Repeat for the other side.
-
-
-

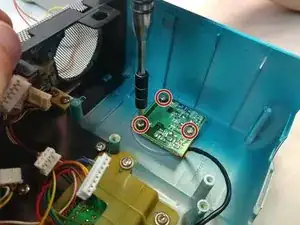

Remove the three 7.9 mm Phillips #2 screws holding the scroll wheel board down.
-

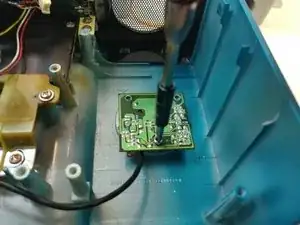

Repeat for the other side.
-
-
-

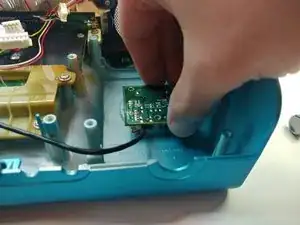

With the screws removed, gently pull the scroll wheel circuit board up.
-

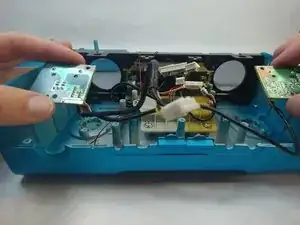

Repeat for the other scroll wheel circuit board.
-
-
-
The connector to the scroll wheel has already been disconnected from the motherboard.
-
Untangling the wires might be necessary to completely remove it.
-
To reassemble your device, follow these instructions in reverse order.
