d.light Solar Lantern S2 Battery Replacement

Written By: Jeremiah Rhoades
  • Comments: 1
d.light Solar Lantern S2 Battery Replacement

Difficulty

Easy

Steps

3

Time Required

1 - 3 minutes

Introduction

This guide shows how to replace the battery for the d.light Solar Lantern S2.

  1. QjVYgZr3BUiAPGHG
    QjVYgZr3BUiAPGHG
    fhSPFnPOaqIWaZDD

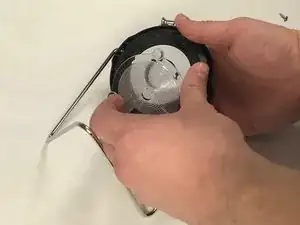

    • To remove the lens, three T15 x 12.5mm screws must be removed by a T15 head screwdriver.

    • The location of the other two screws are marked in red.

  2. 25usrjUZHIBsSnF6
    25usrjUZHIBsSnF6
    glWVdHAtcIEvsdTc
    AbCptXp4BD611VfF

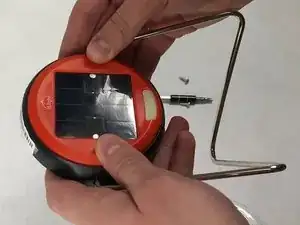

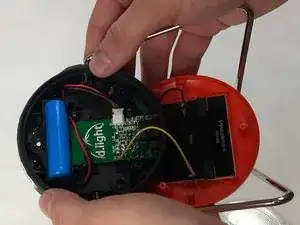

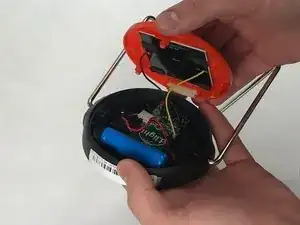

    • After the lens has been removed the back cover needs to be removed. There are no snaps or screws holding it in place.

  3. WOXGHC3m1jjRHwE1
    WOXGHC3m1jjRHwE1
    mQmfqSxZ65uSPvRk
    VQBlfje5Q5xRTROc

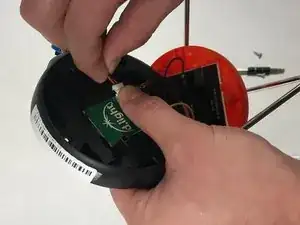

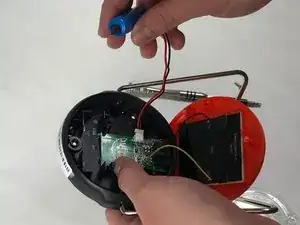

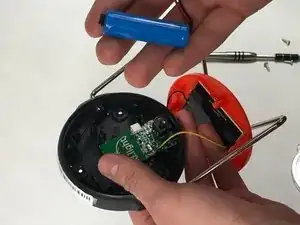

    • Take the battery out of its setting. It is only held in by friction (no snaps or screws).

    • Disconnect the battery by unpluging the white connector.

    • Install the new battery

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Jeremiah Rhoades

Member since: 07/11/17

447 Reputation

One comment

thanks for this.

You didn’t mention the model/name of the battery replacement. Can you help with that?

Albert H -
