Zeal Optics iON Viewfinder Lens Assembly Replacement

Written By: Eric Flores
  • Comments: 0
Zeal Optics iON Viewfinder Lens Assembly Replacement

Difficulty

Moderate

Steps

7

Time Required

No estimate

Introduction

This guide is a prerequisite to removing the viewfinder lens and/or LCD.

  1. WWYDZAdVO5KvIEIK
    WWYDZAdVO5KvIEIK
    C5iDlPpmVWLdLewk

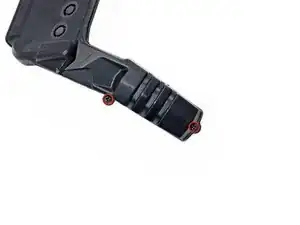

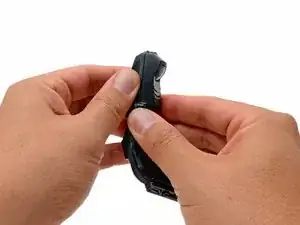

    • Remove the two 7.5 mm Phillips screws on the front of the viewfinder housing.

    • Flip the viewfinder housing over 180 degrees.

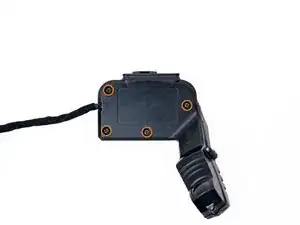

    • Remove the four 7.1 mm Phillips screws from the back of the viewfinder housing.

  2. e4GenlIPvxG5ZPGl
    e4GenlIPvxG5ZPGl
    ODy6c1TVMZbKHBAd

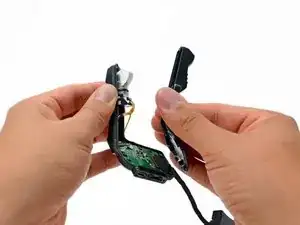

    • Pull the two halves of the viewfinder housing apart.

  3. RLmCIpcNRocaJQpy
    RLmCIpcNRocaJQpy
    TbyqNHjJfFZrVQCI

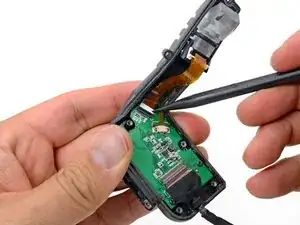

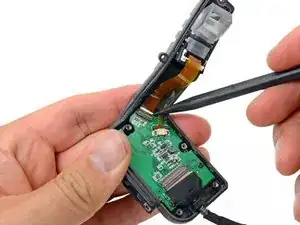

    • Use the tip of a spudger to flip up the retaining flap on the LCD ribbon cable ZIF connector.

    • Be sure to pry up on the hinged flap, not the connector itself.

  4. r31OJfGRJ6qESqVj
    r31OJfGRJ6qESqVj
    VDHl5mWVy5YSpLEm

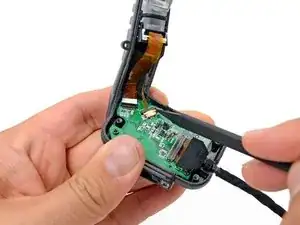

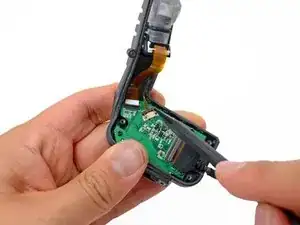

    • Use the tip of a spudger to push out the retaining clip on the viewfinder backlight ribbon cable ZIF connector.

  5. JmLhSookI3PmHtdf
    JmLhSookI3PmHtdf
    CmDaodrRQF1uHBVa

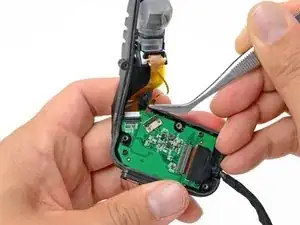

    • Using your fingers or tweezers, gently pull out the backlight ribbon cable from its connector on the button board.

  6. eWMLmGFRp2PSpFmt
    eWMLmGFRp2PSpFmt
    Sa5Hwc6N4fej1ACX

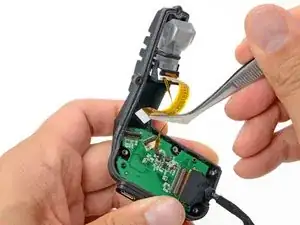

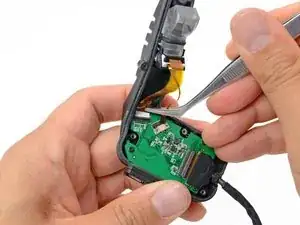

    • Using your fingers or tweezers, remove the LCD ribbon cable from its connector on the button board.

  7. LhswlSBHAn3AOeTp
    LhswlSBHAn3AOeTp
    b6MofhpFVjcmytfW

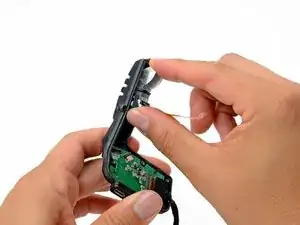

    • Remove the viewfinder lens assembly from the viewfinder housing.

Conclusion

To reassemble your device, follow these instructions in reverse order.
