Zeal Optics iON Motherboard Assembly Replacement

Written By: David Hodson
  • Comments: 0
Zeal Optics iON Motherboard Assembly Replacement

Difficulty

Moderate

Steps

6

Time Required

No estimate

Introduction

This guide is a prerequisite for removing any components attached to the motherboard.

  1. qrNRvjvV4Cl3kawy

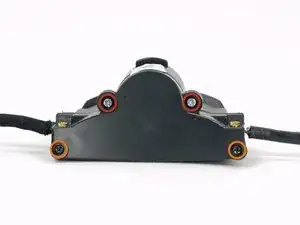

    • Remove the following four screws securing the back cover of the camera housing:

    • two silver 8.5 mm screws,

    • two black 8.8 mm screws.

  2. WUVOgLmFotekqAGr
    WUVOgLmFotekqAGr
    vcyNQlxTuSHknXWp

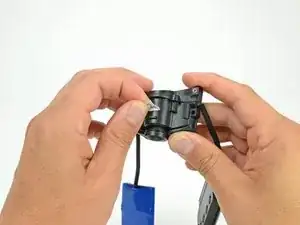

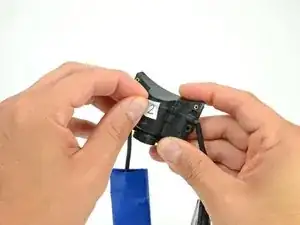

    • Peel the white sticker off the bottom of the camera housing.

  3. saKSjWRVNA2gnVdX
    saKSjWRVNA2gnVdX
    t6vJC2EM111EwYAb
    D2KkUAw6BEagO5iY

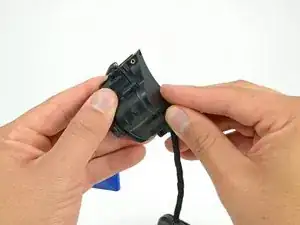

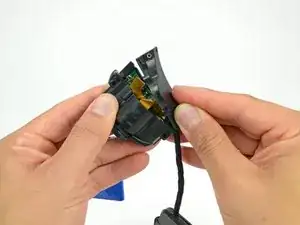

    • Lift the back cover off the camera housing and remove it.

  4. Z6BNcsWbpLiTZcRS
    Z6BNcsWbpLiTZcRS
    NgpFRO3ZO5MM3mfe

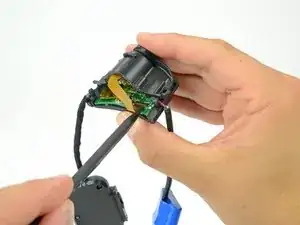

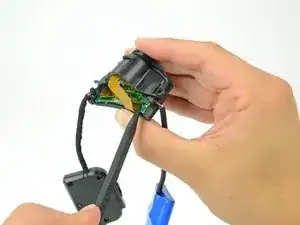

    • Use the tip of a spudger to pry up the retaining flap of the camera sensor cable ZIF connector on the motherboard.

    • Be sure that you are prying up on the hinged flap, not the connector itself.

  5. xcVFGXlUhjZHRGXL
    xcVFGXlUhjZHRGXL
    PfGjjk5DEaccpcch

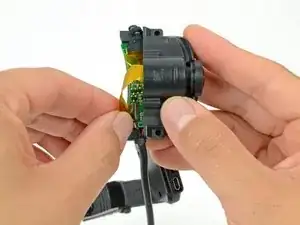

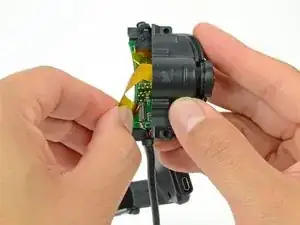

    • Pull the camera sensor ribbon cable straight out of its connector on the motherboard.

  6. fSLuFbnglcOUVNYa
    fSLuFbnglcOUVNYa
    2KYxuL6bHPk5uUWW
    GSO2ivjivYTh3DZx

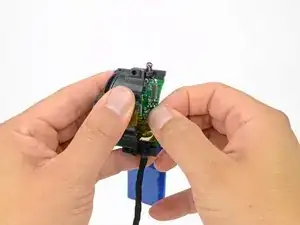

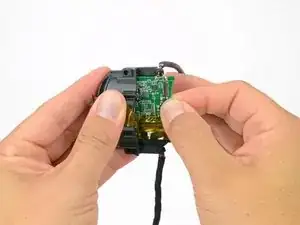

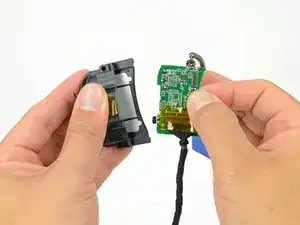

    • Grab the edge of the motherboard and gently slide it out of the camera housing.

    • There may be some resistance due to the foam pad along the bottom of the camera housing.

Conclusion

To reassemble your device, follow these instructions in reverse order.
