Wacker Pump PG1 2014 Air Box Replacement

Written By: Carsten Frauenheim
  • Comments: 0
Wacker Pump PG1 2014 Air Box Replacement

Difficulty

Moderate

Steps

7

Time Required

No estimate

Introduction

Prerequisite only! This procedure is part of another guide and is not meant to be used alone.

Use this guide to remove the air box on a Wacker PG1 (2014) Pump.

  1. 4XNBHUoBOEUKnTHe
    4XNBHUoBOEUKnTHe
    fFirnes2hIApx6RL

    • Before beginning repairs, disconnect and remove all hoses.

    • Flip the motor ignition switch into the OFF position.

  2. QVlZftYwcoPLJLxI

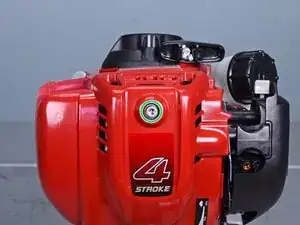

    • Use a 4 mm hex key to remove the bolt securing the engine cover.

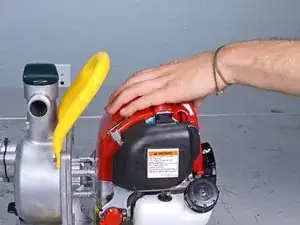

  3. uSEFMvc2ePoVSog3
    uSEFMvc2ePoVSog3
    bRHJqRFKqRCQYksU

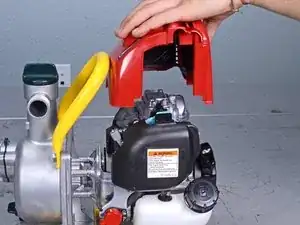

    • Lift up to remove the engine cover.

  4. ngUT2UJAfTvPuEwN
    ngUT2UJAfTvPuEwN
    PmfnZRVRIfKywjGF

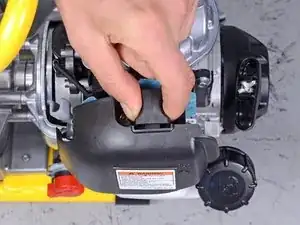

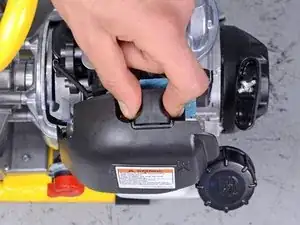

    • Use your fingers to pinch the locking tab on the top of the air box cover.

  5. ChLSDMigwFUNQiEc
    ChLSDMigwFUNQiEc
    GmbJnde5EN3ZQuuV
    EfiuDZJGb1sjU2oA

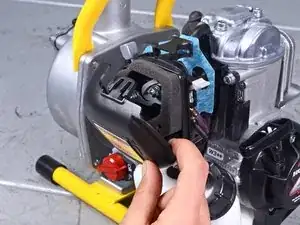

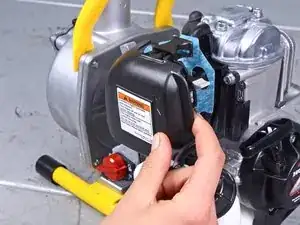

    • Tilt the unlocked air cleaner cover down and pull it away from the air box to unhook it.

    • Remove the air box cover.

  6. bekv4LCEdDHwdVHG

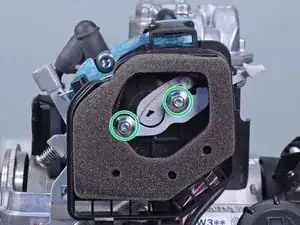

    • Use a 6 mm socket to remove the two nuts securing the air box.

  7. ucxi4LUYOh2tnOgt
    ucxi4LUYOh2tnOgt
    agAyAMpaCjTyGKMh
    jhUEL5GHNFdue5ph

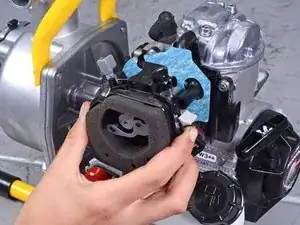

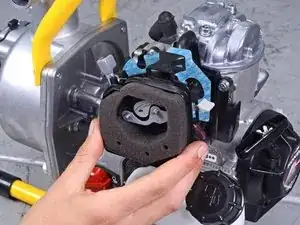

    • Pull the air box directly away from the motor to remove it.

    • Once removed, the metal bracket inside of the air box will become loose. Don't lose it.

Conclusion

To reassemble your device, follow these instructions in reverse order.
