Vizio SmartCast Crave 360 Bottom Panel Replacement

Written By: Kristen Gismondi
  • Comments: 1
Vizio SmartCast Crave 360 Bottom Panel Replacement

Difficulty

Moderate

Steps

3

Time Required

No estimate

Introduction

  1. YyaPKqqeM1OgZEXe
    YyaPKqqeM1OgZEXe
    meTOgMabDVlUFLTH

    • Orient the speaker so that the bottom faces up.

    • Peel the rubber ring off of the bottom using the spudger.

  2. q1tgdQrsEBXKBYPK

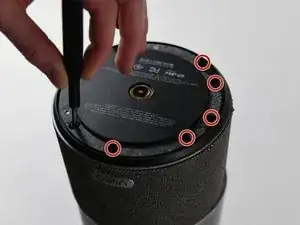

    • Remove the eight 5 mm screws connecting the bottom panel to the gray power port using a Phillips #000 screwdriver.

  3. BlPB5NSOSsdLBGuq
    BlPB5NSOSsdLBGuq
    tyYtSaVCUrnOEkEw

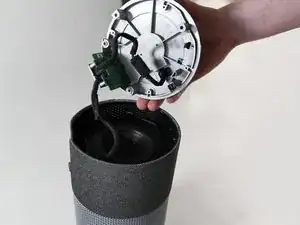

    • Lift the gray power port and move it to the side to reveal the bass.

    • Do not touch the wire that runs from the power port to the bottom of the bass component.

    Anyone know the ribbon cable part number if damaged ?

    James Middlemiss -

Conclusion

To reassemble your device, follow these instructions in reverse order.
