Introduction
-

                  -

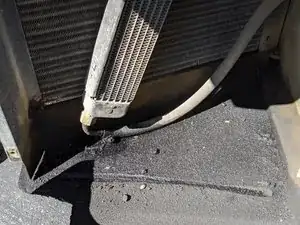

            After removing the side panel, it's clear that my oil cooler has been leaking for a while. Fortunately, AFAB sells a complete replacement kit including a new oil cooler and new hoses!

-

-

                  -

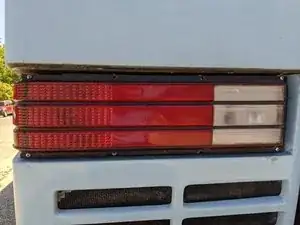

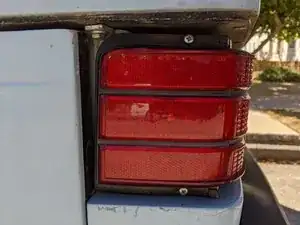

            The tail light covers come off easy enough with 10 screws and a single connector.
-

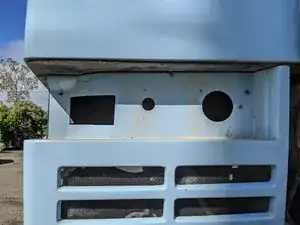

            The white housing beneath comes off with a bolt on the left and a screw on the right.

-

-

                  -

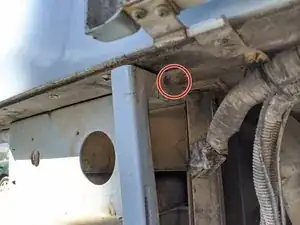

            On my Vixen there was a hex head bolt on the top right, and a on-its-way-to-being-stripped Phillips head bolt on the top left.

-

-

                  -
            There were two Phillips screws in the bottom of the panel, but these weren't actually attached to anything.
-

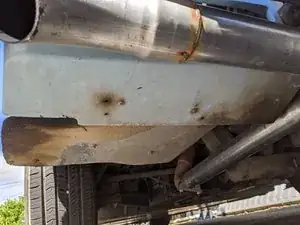

            My new side-routed exhaust definitely made it harder to get this panel out.

-

-

                  -

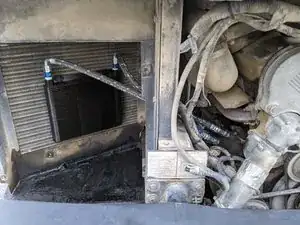

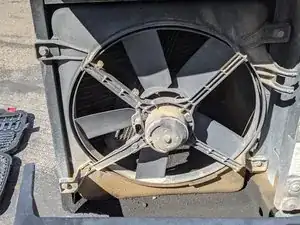

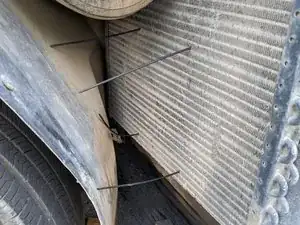

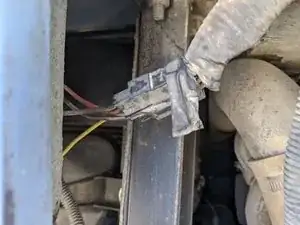

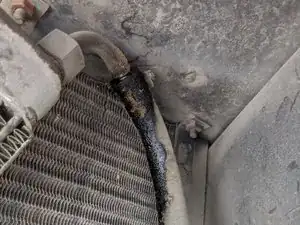

            Once the condenser fan is removed we can get a good look at the oil cooler. The fittings are certainly leaking, but the cooler itself might actually be fine.
-

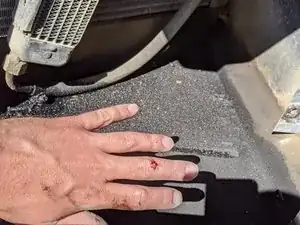

            The Vixen bleeds black and I bleed red, whoops!

-

-

                  -

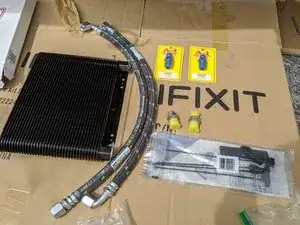

            Here's all the shiny new replacement parts. You can buy the oil cooler kit from AFAB.
-

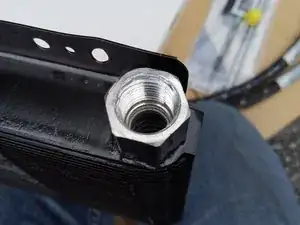

            I made a mess of the threads putting one of the blue aluminum fittings in to the top of the new oil cooler. Thanks to a 1/2" NPT tap and die from Harbor Freight and a friend's help I was able to salvage it and I don't think it leaks, but time will tell...

-

-

                  -

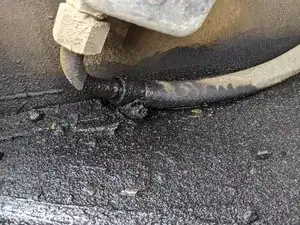

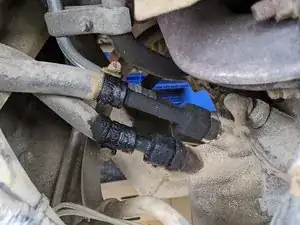

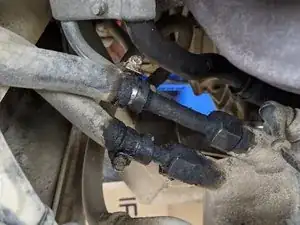

            On a closer inspection, all my existing fittings are leaking, which at this point I suppose is a good sign.

-

-

                  -

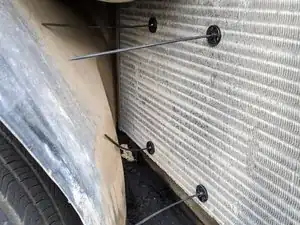

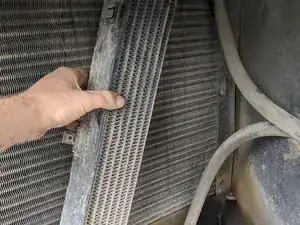

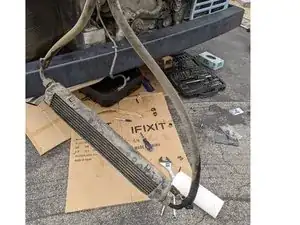

            Getting the oil cooler off the condenser was easy, there's just two bolts. But it's still attached to the engine...

-

-

                  -
            It was easy enough to loosen the hose clamps and pop the hoses off.
-
            This made a mess, because not surprisingly, there's oil in the lines.

-

-

                  -

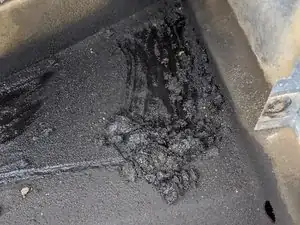

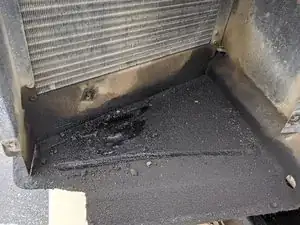

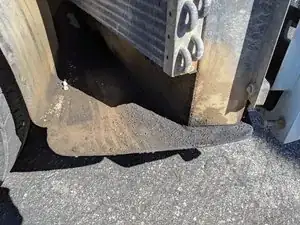

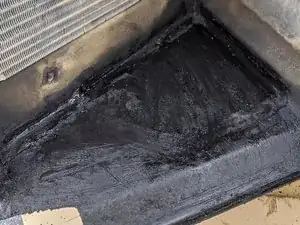

            There was a lot of oil/dust sludge beneath the oil cooler, requiring a rather dirty cleanup.

-

-

                  -

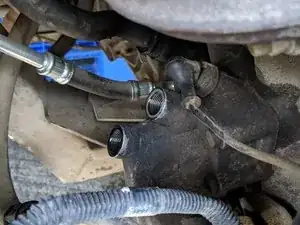

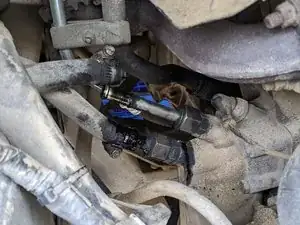

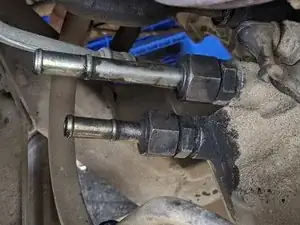

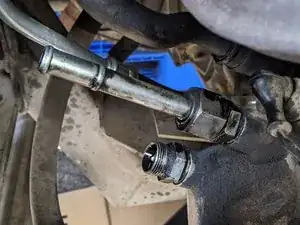

            Removing the remaining couplers was quite challenging.
-

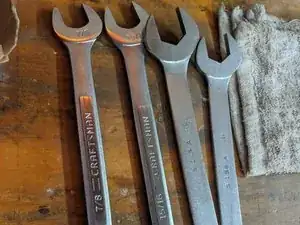

            I was able to borrow some large metric wrenches (24 mm and 27 mm) from a friend to help with this step.

-

-

                  -

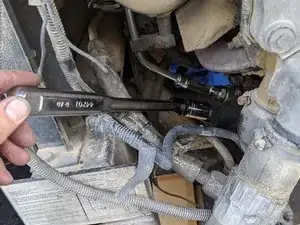

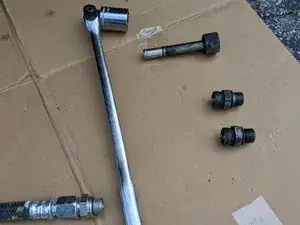

            After the first fitting was off, I was able to get a 24 mm socket over the second one to remove the fitting.

-

-

                  -

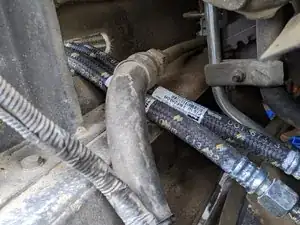

            I routed the new lines the same as the old ones.
-

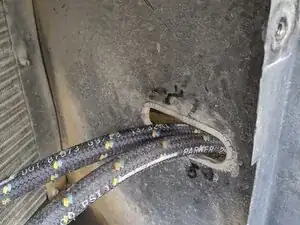

            The plastic lining the hole the hoses go through is definitely decaying, but seems like it'll still protect the hoses ok.

-

-

                  -

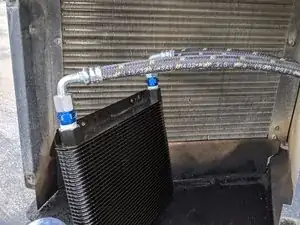

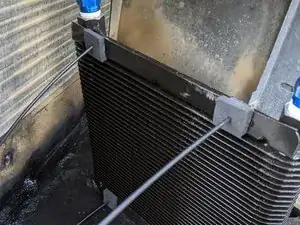

            Everything's in place!
-

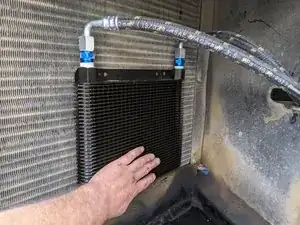

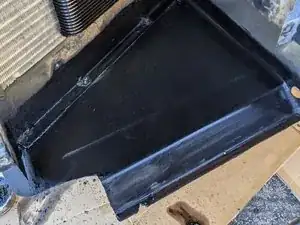

            I spent some more time cleaning the dirty panel below. Thus far I have no leaks from the new oil cooler!

-

To reassemble your device, follow these instructions in reverse order.
