Introduction
Un-stick an 11w Vex V5 smart motor that has seized up
This method will void the warranty and competition legality of your motor if you complete this process.
- Before opening the motor attempt to spin the motor with a high-strength axle and large wheel.
- This fix may only be temporary. The reliability of this motor is not guaranteed when completing this process.
-
-

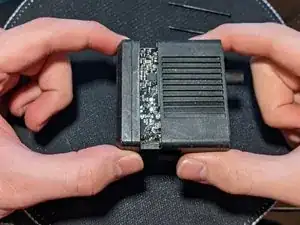

use a Small Phillips head screwdriver to remove the top case.
-

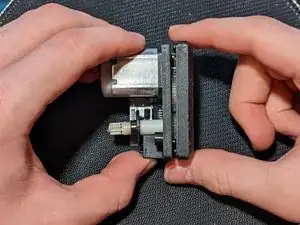

simply pull the cartridge out of the motor.
-
NOTE: my motor had no case when I got it so I only had the attached PDF for images.
-
-
-

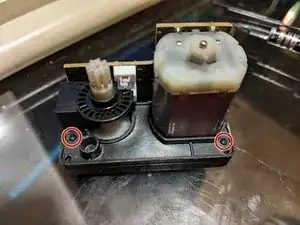

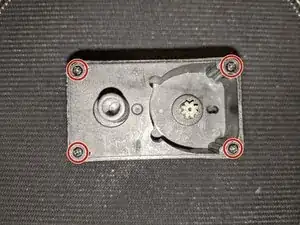

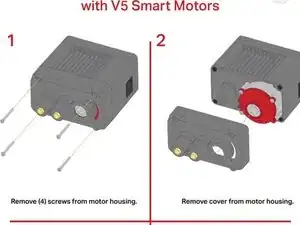

Remove the 4 screws holding the top case on the motor.
-

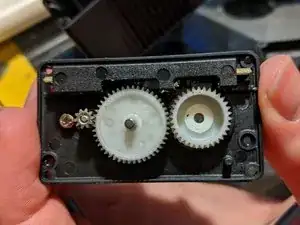

Once the screws are removed you can pull the 2 pieces apart.
-
-
-

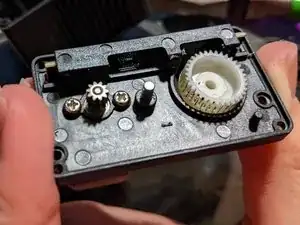

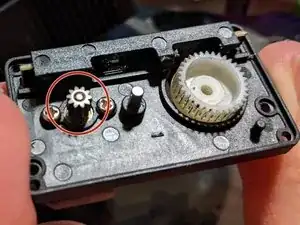

1. Tap the small metal gear and metal shaft on the other side of the motor.
-

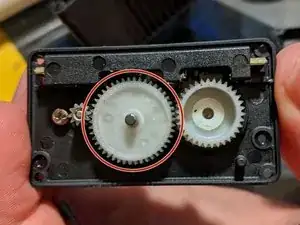

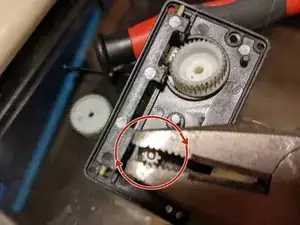

2. Grip the metal gear with pliers and twist 1 full revolution or until the motor spins freely by hand.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
