Uniden Guardian G955 Touchscreen Replacement

Written By: Pauline Lara
  • Comments: 3
Uniden Guardian G955 Touchscreen Replacement

Difficulty

Moderate

Steps

6

Time Required

15 - 20 minutes

Introduction

Separate the case in order to remove casing holding the touchscreen in place. Replace the touchscreen.

  1. wvxX1NyCLZbKFOPt

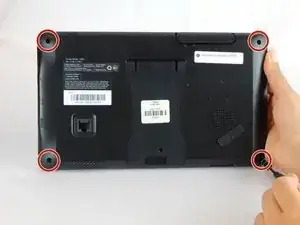

    • Use a J1 Phillips screwdriver to remove the four 6.1 mm screws at the back of the monitor.

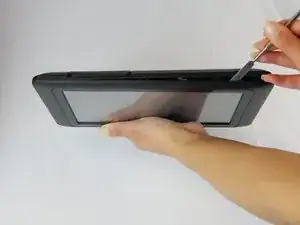

  2. sERCeeqwv3jRKsyq

    • Use metal spudger or an opening tool to pry open the device.

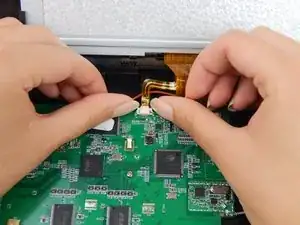

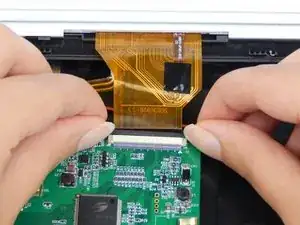

  3. ygouhatUbO6JydR1
    ygouhatUbO6JydR1
    EMFlCIGGyRDXathZ

    • In both pictures, disconnect the zero insertion force (ZIF) connector from the motherboard using your fingernail by sliding up on the male end of the connector to loosen it.

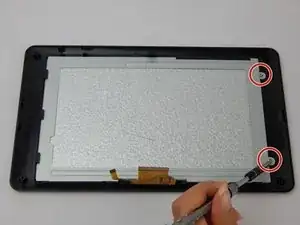

  4. h64owqviSTEY1my4

    • Use a J1 Phillips screwdriver to remove the two 6.1 mm screws.

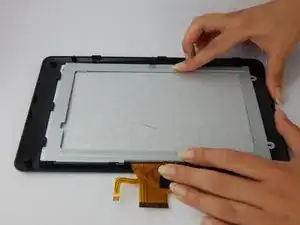

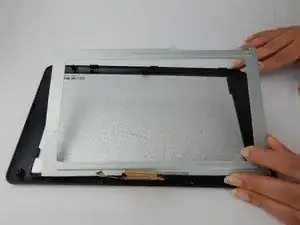

  5. JUHHoVNSARXOoZjH
    JUHHoVNSARXOoZjH
    tGIsKfiCxKm6YRNS

    • Apply pressure to metal casing and slide off.

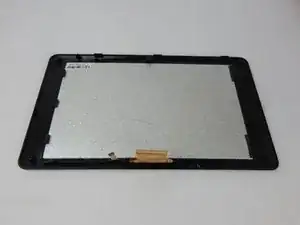

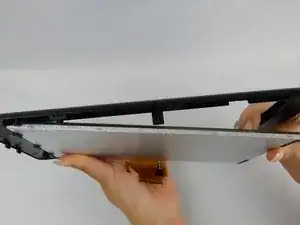

  6. yJp4RDvfFHFdydKD
    yJp4RDvfFHFdydKD
    1QUhqA1wO2xYDwyy

    • Push touchscreen through black case.

Conclusion

To reassemble your device, follow these instructions in reverse order.
