Uniden Guardian G955 Power Button Replacement

Written By: Pauline Lara
  • Comments: 0
Uniden Guardian G955 Power Button Replacement

Difficulty

Difficult

Steps

4

Time Required

20 minutes

Introduction

This replacement guide will require a soldering tool and various other iFixit tools.

  1. RrT42wnrsVN4WtJK

    • Use a J1 Phillips screwdriver to remove the four 6.1 mm screws at the back of the monitor.

  2. cKjiZGGCb6OlQBY3

    • Use a metal spudger or an opening tool to pry open the device.

  3. bBsrkFlMfMJPWPZd

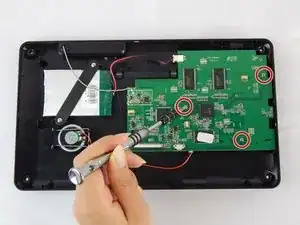

    • Use a J1 Phillips screwdriver to remove the three 6.1 mm screws on the motherboard.

  4. vRXyZCnLbYQQZUEl
    vRXyZCnLbYQQZUEl
    C1kxQUuxX4RaL53X
    Jjjd2BtrNNMY31NQ

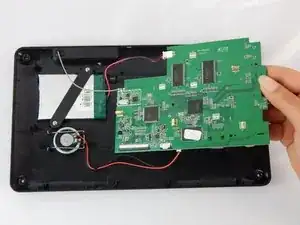

    • Carefully, lift the motherboard and turn it to the backside.

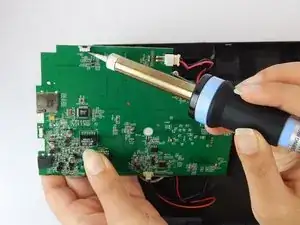

    • Desolder the four corners of the power button. Please follow this link on how to proceed to desolder: How To Solder and Desolder Connections

Conclusion

To reassemble your device, follow these instructions in reverse order.
