Torque King Electric RTR RC Monster Truck Motor Replacement

Written By: Maximiliano Cortes
  • Comments: 1
Torque King Electric RTR RC Monster Truck Motor Replacement

Difficulty

Difficult

Steps

12

Time Required

20 - 30 minutes

Introduction

This guide requires removing the battery, casing, and rear wheels. Desoldering skills are required for replacing the motor. For reference, a desoldering guide is located here.

  1. HvrWxkeNH4o3qKFQ
    HvrWxkeNH4o3qKFQ
    OELDaXpRivNf1I4T

    • From the top view, remove each of the four pins that hold the casing in place.

  2. Z23WGBUwOWeIQZTD

    • Slowly pull the casing up to remove it.

  3. ufmNOL1BIUVaSwWC

    • Beginning at the bottom of the truck, twist the release clip on the casing until the release clip is no longer covering the battery casing.

  4. Myfi1X2GjrSGyWsE

    • Next, use a Phillips 00 screwdriver to remove the 8mm screw on the battery casing and remove the battery casing.

  5. CATFYJoTHOrxZROx

    • Do not skip this step if you are continuing onto the next step, you will risk electric shock.

    • Finally, remove the battery from the white connector by squeezing the clip on the connector while pulling.

  6. 6GetCgmjOB2OTOyl

    • Using a Phillips 1 screwdriver, completely unscrew the 8mm screw located in the center of the wheel. Repeat this step for other wheels if needed.

  7. gPeBUBFJIOpLiwad

    • Carefully pull the wheel off of its axle. Repeat for other wheels as necessary.

  8. rpUcAYpLar2QkhT5
    rpUcAYpLar2QkhT5
    A4CMUDdQmDJX4gTG

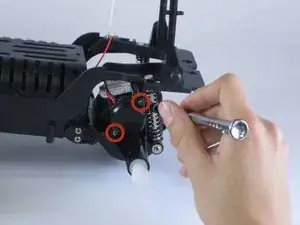

    • After removing the rear wheels, use a Phillips #1 screwdriver to remove the two 11m screws indicated.

  9. CvtRnZYyOQSKqKEB

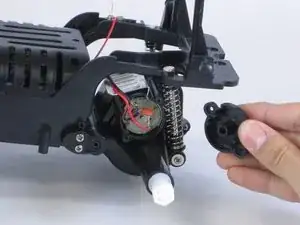

    • Remove the cap to reveal the motor.

  10. mCZigctIKpLnEvwW
    mCZigctIKpLnEvwW
    bVyDmATnWQ1OmqEX

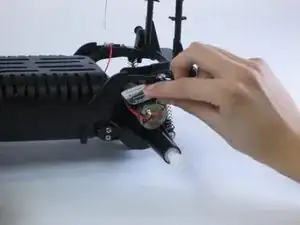

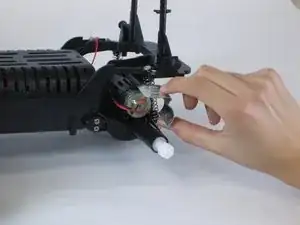

    • Remove the metal piece that clasps the motor in place.

  11. 1mRLda6copFrJHDA

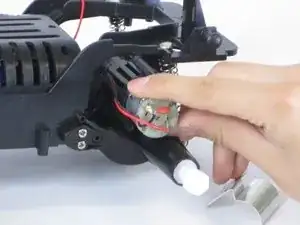

    • Carefully pull out the motor from the chassis.

  12. PLRaaVsfOqfNUsG1

    • Warning: Ensure that the battery is properly removed before attempting this step. If you attempt this step with the battery in you risk injury by electric shock and damage to the truck.

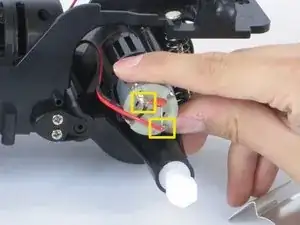

    • Desolder the red and black wires from the motor. Note where each wire is supposed to connect.

    • Caution: Do not desolder the small orange capacitor.

Conclusion

To reassemble your device, follow these instructions in reverse order.
