Toro Stump Grinder 22615HD 2017 Pulley Replacement

Written By: Sam Omiotek

Comments: 1

Toro Stump Grinder 22615HD 2017 Pulley Replacement

Difficulty

Moderate

Steps

Time Required

30 minutes - 2 hours

Introduction

Follow this guide to replace the pulley on a 2017 Toro Stump Grinder SGR-13 model 22615HD.

Tools

Parts

Toro Pulley 95-0883

Step 1

Before you begin, ensure the machine is powered down and cool to the touch.
Turn the ignition switch to the off position.

Step 2

Flip the fuel cutoff valve switch into the off position.

Step 3

Grab the plastic housing at the end of the spark plug wire.
Pull firmly to disconnect the wire from the spark plug.

Step 4

Tilt the machine so that it is resting on the handle with the cutter wheel raised.

Step 5

Use a 14 mm socket to remove the fasteners securing the belt guard:
One 10 mm bolt
One 10 mm nut

these are 10mm fasteners, not 14mm , measure the distance from the outer thread on one side to the outer thread on the other side, this is called : major diameter

JAMES -

Step 6

Remove the belt guard.

Step 7

Use a 9/16 inch socket to loosen the four nuts securing the bottom of the motor enough to allow the motor to slide freely. Do not remove the nuts.
Use a 1/2 inch wrench in combination with the socket wrench to hold the bolts in place.

Step 8

Use a 1/2 inch wrench to loosen the two bolts behind the centrifugal clutch enough to allow the motor to slide freely. Do not remove the bolts.

Step 9

Wrap a piece of tape around the upper half of the tensioner bolt to mark the location of the second nut.
Use a 9/16 inch wrench to loosen the nut on the lower half of the tensioner bolt until the motor can slide forward as much as possible.
During reassembly, reference the tape to position the outer nut into the same location as before to ensure proper belt tension.

Step 10

Slide the engine towards the cutter blade to loosen the drive belt.

Step 11

Lift the drive belt up and away from the machine while rolling it towards the cutter head to gradually roll it off of the pulley.

Step 12

Remove the drive belt.

Step 13

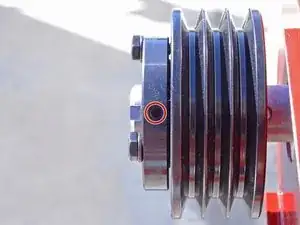

Use a 1/8 inch hex key to remove the pulley set screw.

Step 14

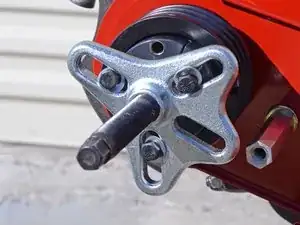

Use a universal puller to remove the pulley from the cutter wheel shaft:
Attach the universal puller to the pulley using the three bolts provided on the pulley.
Use a wrench to torque down the center screw to slowly loosen the pulley.
This may take a lot of force.
If the pulley seems to be stuck after significant pressure is applied with the universal puller, use a blowtorch to apply heat where the pulley contacts the shaft.
