Introduction
Power cords can become damaged due to pinching or cutting of the cord. Follow this guide to replace the power cord.
Parts
-
-
Using a PH1 screwdriver remove the two 10mm screws that hold down the transformer.
-

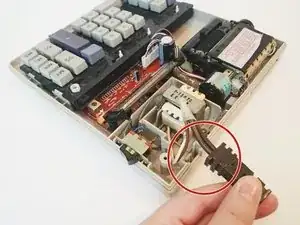

Gently remove the transformer.
-
-
-

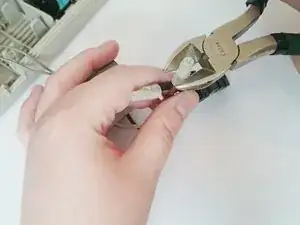

Use a wire cutter to cut off the white cap and expose the wires. Try to cut close to the tip of the white cap - to leave as much wire as possible.
-
-
-
Twist the exposed section of the 2 wires together.
-

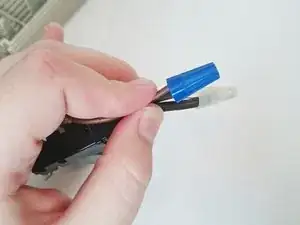

Twist a new cap over the exposed wires. Make sure that the cap covers all of the exposed wire.
-
Repeat steps 4-6 for the second set of wires.
-
-
-
Replace the transformer and ensure that the new wire caps fit in the space shown.
-
Plug in the new power cord and test the calculator before replacing the top cover.
-
To reassemble your device, follow these instructions in reverse order.
