Tefal Thick N Thin Toaster 815032 Inner Heating Panels Replacement

Written By: Kristen Gismondi
  • Comments: 0
Tefal Thick N Thin Toaster 815032 Inner Heating Panels Replacement

Difficulty

Moderate

Steps

5

Time Required

No estimate

Introduction

  1. Vm2KRMDtaVHBVKYd
    Vm2KRMDtaVHBVKYd
    5Uo42MUWVG5linHA
    3fIqGp2qbsnpRcfE

    • Turn the toaster upside down.

    • Remove the four 10 mm screws from the bottom of the toaster using a TR9 Torx screwdriver.

    • Remove the 14 mm Torx-slot combination screw on the opposite side of the toaster's lever with a TR9 Torx screwdriver.

    • Remove the 11 mm Torx-slot combination screw near the toaster's lever with a TR9 Torx screwdriver.

  2. XQKbmcEeInwFYydM

    • Remove the side of the toaster that does not have the lever.

    • The side will just pop off, as you have removed the screw holding it in place.

  3. bMDXoE4AndrvjeBZ
    bMDXoE4AndrvjeBZ
    hHTWYjQntDehXqZJ

    • Remove the 10 mm screw from the top of the remaining side of the toaster using a TR9 Torx screwdriver.

    • This side will pop off as well once you have removed the screw.

    • The toaster's lever and heating slide will fall off with a simple pull.

  4. jTAloiMNWUl6OdfZ

    • Use an opening tool to pry back the metal tabs on the left and right corners of the toaster's front and back metal panels.

    • Pull off the front and back panels of the toaster.

  5. TqKSasDAQ6jCKKiO
    TqKSasDAQ6jCKKiO
    PLmxbLkncDUB5CG5

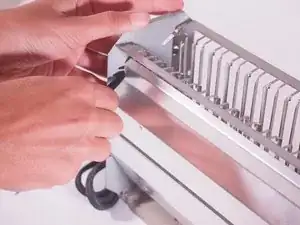

    • Pry back the metal tabs on the corners of the front and back inner heating panels using an opening tool.

    • Remove both the front and back inner heating panels of the toaster.

Conclusion

To reassemble your device, follow these instructions in reverse order.
