Before disassembling the quadcopter, find out which motor(s) need to be replaced.
-

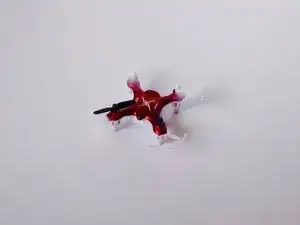

Rotate your quadcopter until the front of the quadcopter is facing you, or the side opposite of the charger hole.
-
Remember where the motor(s) that needs replacement in relativity to the charger port.
-
-
-

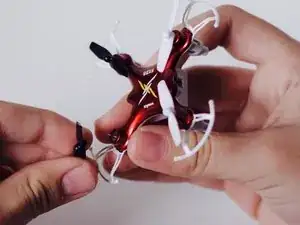

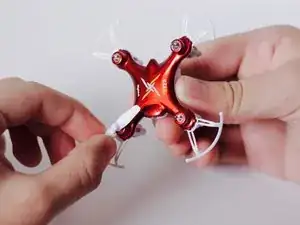

After all propellers are off the quadcopter flip the quadcopter over and unscrew the undercarriage from the body to reveal circuitboard and motors.
-

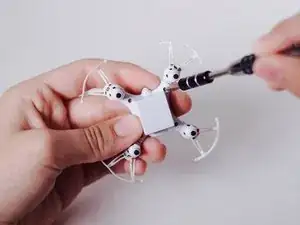

For this step you will need to have a small Phillips head screwdriver.
-
-
-

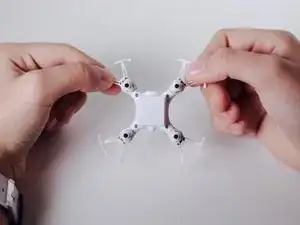

Remove the motor shell and body cover from the four motors revealing circuitboard and the motors compleatly.
-
After separate these parts this makes it easier to reconstruct the quadcopter.
-
To reassemble your device, follow these instructions in reverse order.
