Syma S107 Gyro Replacement

Written By: Christopher Smith
  • Comments: 6
Syma S107 Gyro Replacement

Difficulty

Moderate

Steps

7

Time Required

15 - 30 minutes

Introduction

Replace the the gyro on your Syma S107 so that it stops self destructing.

  1. 315Xutk4sYfCn51R
    315Xutk4sYfCn51R
    qbv5uArMS2xWKtEg

    • Using tweezers, gently remove the two stabilizing links by pulling straight away from the point of connection.

  2. MNPkapsXgNVVhD5N
    MNPkapsXgNVVhD5N
    xyyWHlYSYxSHLEi4

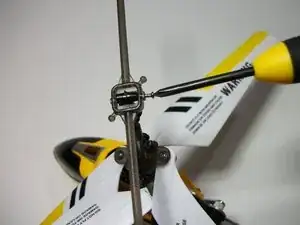

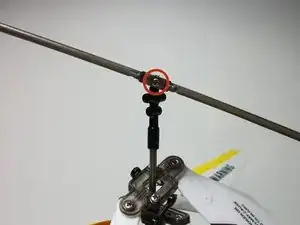

    • Remove the counterweight bar by removing the screw.

    • One 10.1mm Phillips #0.

  3. W2CE35EnEUWACsGc
    W2CE35EnEUWACsGc
    EK4BigZusgNWZpnc

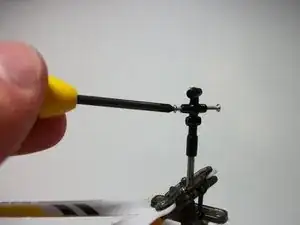

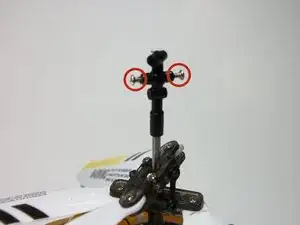

    • Remove the gyro carriage by removing the following screws:

    • Two 5.6mm Phillips #0.

    • When reinstalling these screws make sure to line up one screw with the keyway on the main rotor shaft.

  4. IWYGyjxZOGgZDRhs
    IWYGyjxZOGgZDRhs
    MtFlXXHNExgfMiNy

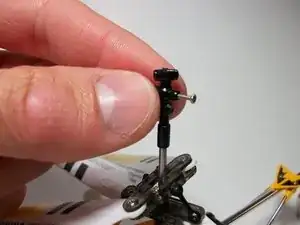

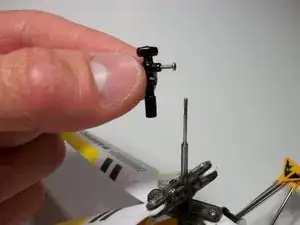

    • Gently remove the broken gyro carriage by pulling up.

    • Remove blade assembly by simply sliding it up and off the shaft.

  5. qbfEpJSXd1l4yMm2
    qbfEpJSXd1l4yMm2
    blvSpgycWGSUn26i
    huVdCuJtpd5BSKgo

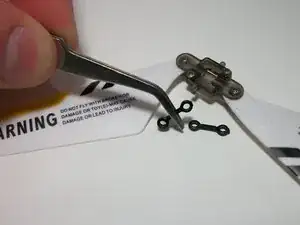

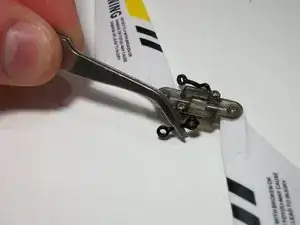

    • Again using tweezers gently remove the stabilizing links from the blade carriage by pulling straight away from the point of connection.

  6. wOjV6VgDcBMGtVWt
    wOjV6VgDcBMGtVWt
    VECDXadKBBRPTBJY

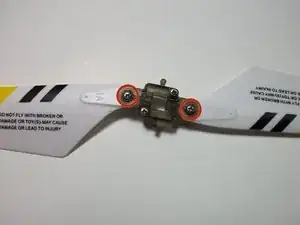

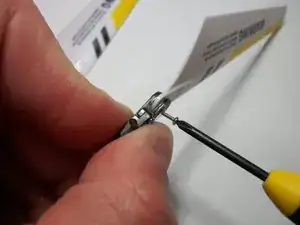

    • Remove the blades from the blade carriage by removing the following screws:

    • Two 4.7mm Phillips #0.

  7. pTVWi2CkBYebXbfK
    pTVWi2CkBYebXbfK
    qR1nieCCvsj4YDtD

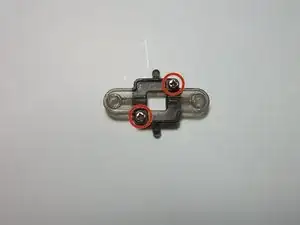

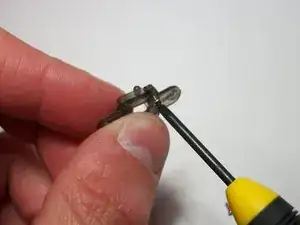

    • Remove the following screws:

    • Two 4.5mm Phillips #0.

    • Make sure to remove any broken plastic pins before reassembling the components.

    • You will have to slide the two halves of the blade carriage over the pins on the gyro carriage first when reassembling.

Conclusion

To reassemble your device, follow these instructions in reverse order.
