Sony Mavica MVC-CD1000 lens Replacement

Written By: YuFan Ma
  • Comments: 0
Sony Mavica MVC-CD1000 lens Replacement

Difficulty

Moderate

Steps

5

Time Required

No estimate

Introduction

This guide will show you how to replace the lens on your device

  1. MI1WXWZY5I1bL4OK
    MI1WXWZY5I1bL4OK
    FIpOkeQKvPV5UqZT

    • Remove the shell of base from the shell of lens

  2. pjgJlZkPyWjwnRjf

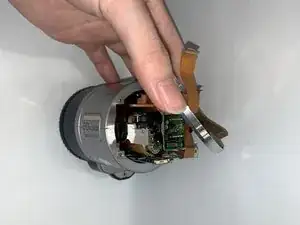

    • The outer casing of the lens consists of two outer casings that are secured by an end cap that connects them. In this part we take this end cap

  3. NO1s5FeSkUbKYKrj
    NO1s5FeSkUbKYKrj
    4eTffdTWZOO1EWku

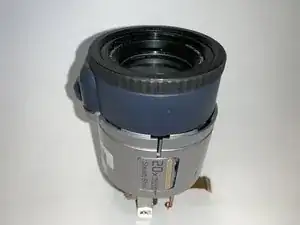

    • There is also a front end cover at the front end of the lens. In this step we take it away.

  4. cr5XblUuBUjFemJS
    cr5XblUuBUjFemJS
    vpwWuZKHtJXBJRdE
    n5jvXUTWHLOLgO4L

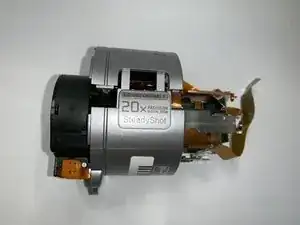

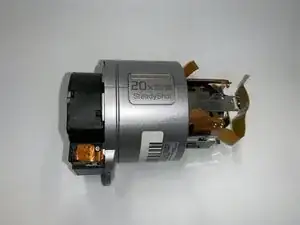

    • Place the lens section horizontally on the workbench and pry open the top cover of the lens with some effort

  5. MfhKMQAEGZH4fsOP

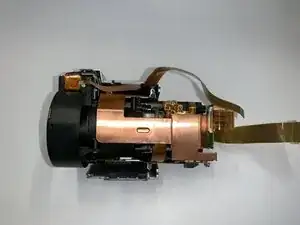

    • After removing the shell of lens we can replace the inside part.

Conclusion

When reassembling your device, follow the instructions in reverse order.
