Sony ICF-P26 Antenna Replacement

Written By: Olaloye Thontteh

Comments: 4

Difficulty

Easy

Steps

Time Required

15 minutes

Introduction

Use this guide to fix or replace a damaged antenna of a Sony ICF-P26 radio.

The antenna enables radios to get reception for their FM and AM bandwidth. A radio with no antenna or a damaged antenna would have distortion of radio waves .

Following these steps would fix the radio reception issues in a short time. There is minimal or no known danger associated with replacing the antenna .

Tools

Step 1

Power off and disconnect the radio from any power source.

Step 2

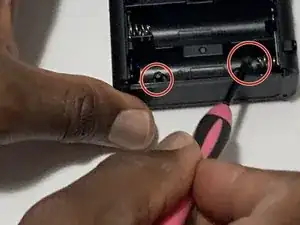

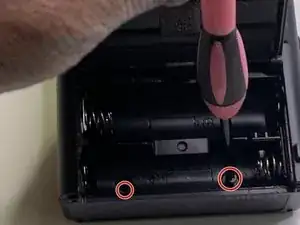

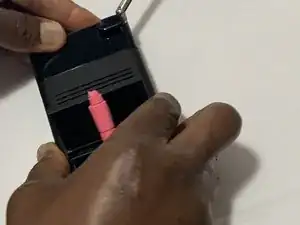

Use a mini screwdriver to remove the two screws from the battery compartment.

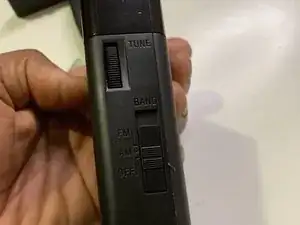

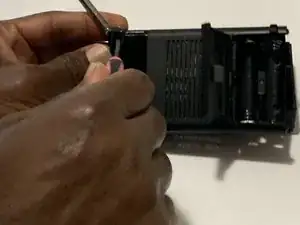

Gently insert an opening tool where the FM/AM/Off switch is, to force your way up.
Insert the opening tool in the other side where the volume and the earphone go.

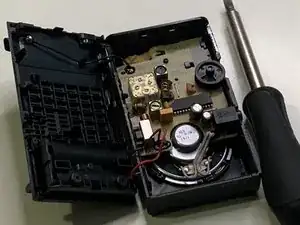

You will hear hinges pop open.

Step 3

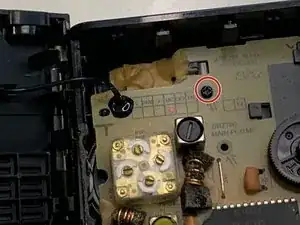

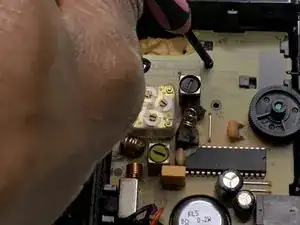

Use the mini screwdriver to remove the screw holding the motherboard.
Unscrew the damaged antenna.

Step 4

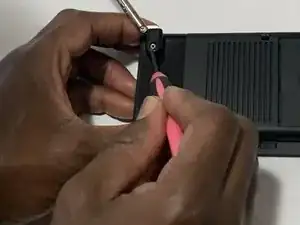

Use the mini screwdriver to replace the new antenna.

Step 5

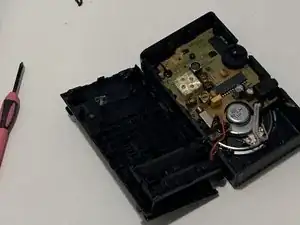

Use the mini screwdriver to assemble the motherboard.

Step 6

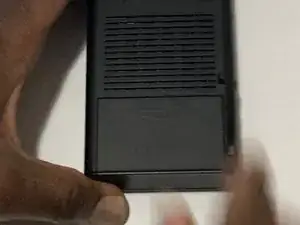

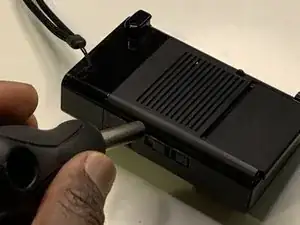

Use the mini screwdriver to assemble the cover.

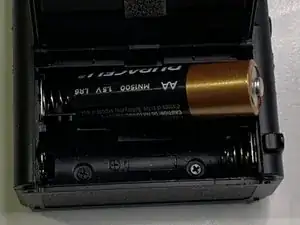

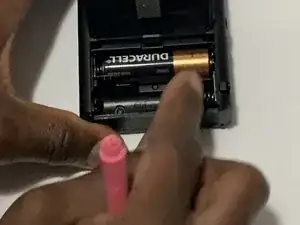

Insert the batteries.

Step 7

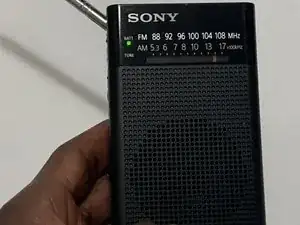

Switch on the radio.
