Introduction
These instructions will guide you step-by-step to remove the door in order to get to the speakers inside
Tools
-

                  -
            Place the camera on a flat service, so that the strap is downward and the lens is facing you.
-
            First, lift up the connector.
-
            Then pull it back.
-
            Remove the connector from the device.

-

-

                  -

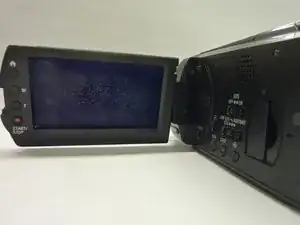

            Position the camera so that the screen tab is pointing towards you.
-

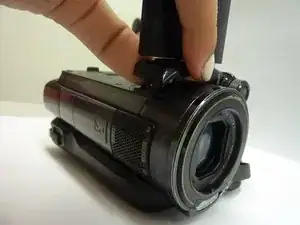

            Twist the tab clockwise one notch.
-

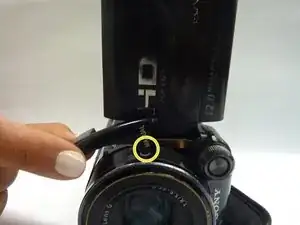

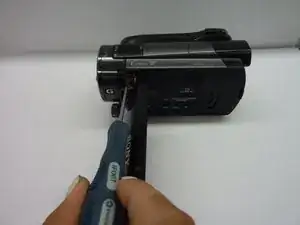

            Remove the single screw.

-

-

                  -
            Place the camera so that the lens is facing downward and the battery compartment is facing towards you.
-

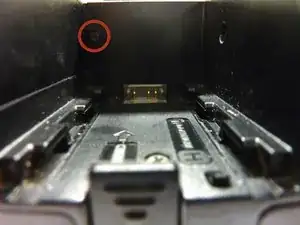

            Remove the single screw.

-

-

                  -
            Lay the device on its side so it is resting on the strap and the bottom of the camera is facing you.
-

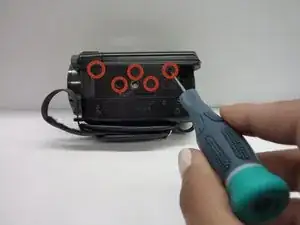

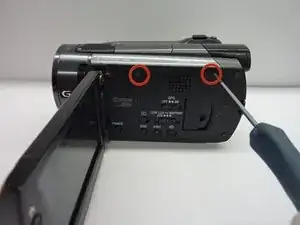

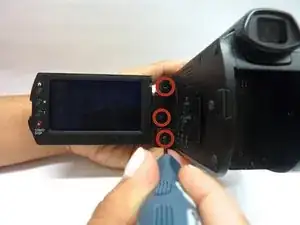

            Remove the five screws.

-

-

                  -

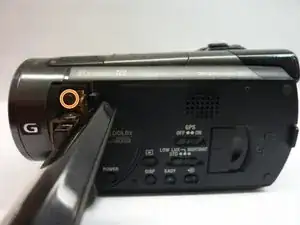

            Close the LCD screen door.
-

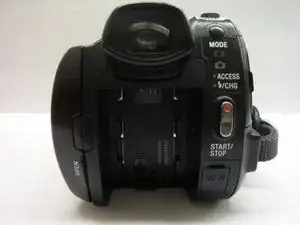

            Turn the camera to the eye piece and battery compartment is facing you.

-

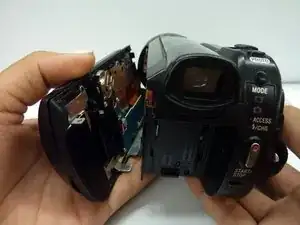

Your door will now be disassembled in order to replace parts inside and these steps in reverse order will also help you put the door back together
