Sony Cyber-shot DSC-WX80 Front Cover Replacement

Written By: Matthew Schmid
  • Comments: 0
Sony Cyber-shot DSC-WX80 Front Cover Replacement

Difficulty

Easy

Steps

2

Time Required

5 - 15 minutes

Introduction

Make sure you have the necessary tools in order to complete the front cover replacement for the Sony Cyber Shot WX80 and be sure to have a steady hand when dealing with the smaller and more fragile parts.

  1. snrHjjitaXmx4vbB
    snrHjjitaXmx4vbB
    BT5yjBSu5IOCdqQj
    pRoSNTiYKRPTbYdG

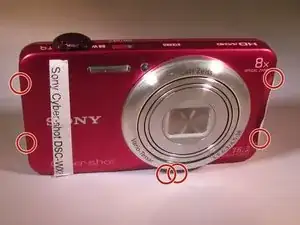

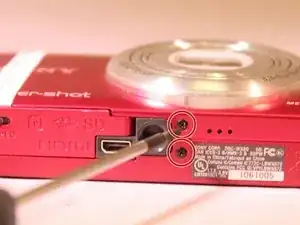

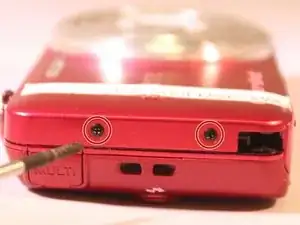

    • Begin by removing all six #00 screws holding the outer chassis together with the Phillips #00 Precision Screwdriver.

    • Remember to keep track of all screws as they are small and very easy to lose

  2. kEBWJsbZHkpsjYcq
    kEBWJsbZHkpsjYcq
    UVK3iAyCL4voDEiE
    51khCK4NBOAFLZIo

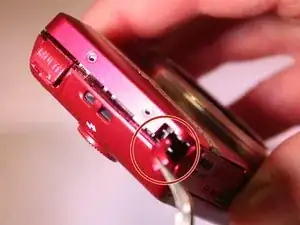

    • Take note of the small free moving flap near the battery port seen in the first of the three photos. Be sure to store the free moving flap in a safe place.

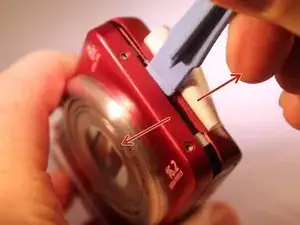

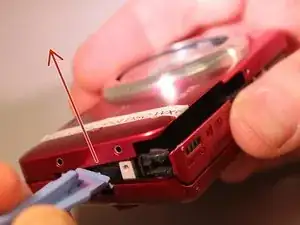

    • Pry the front cover off gently. Use a plastic opening tool if available.

    • Now that you have removed the front cover you can replace it!

Conclusion

To reassemble your device, follow these instructions in reverse order.
