Sony Cyber-shot DSC-WX80 Battery Replacement

Written By: Matthew Schmid
  • Comments: 2
Sony Cyber-shot DSC-WX80 Battery Replacement

Difficulty

Easy

Steps

3

Time Required

15 - 30 minutes

Introduction

Make sure you have the necessary tools in order to complete the battery replacement for the Sony Cyber Shot WX80 and be sure to have a steady hand when dealing with the smaller and more fragile parts.

  1. ppsHROiySLGZSfWc
    ppsHROiySLGZSfWc
    DIkmstHLqUKlaXZF
    Mi6SO3jlAI4UquqQ

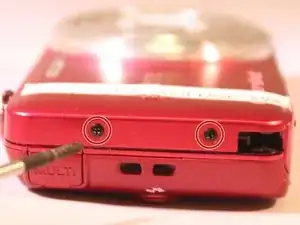

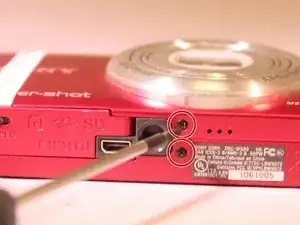

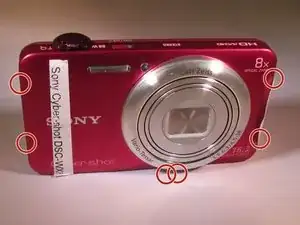

    • Begin by removing all six #00 screws holding the outer chassis together with the Phillips #00 Precision Screwdriver.

    • Remember to keep track of all screws as they are small and very easy to lose

  2. gIlPlaOK1r5uX66e
    gIlPlaOK1r5uX66e
    6DuMcebchONry4ab
    pU2ZSdrWLfiXhB3v

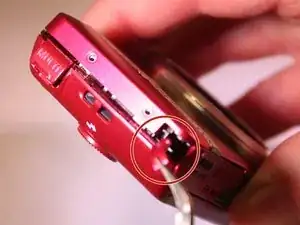

    • Take note of the small free moving flap near the battery port seen in the first of the three photos. Be sure to store the free moving flap in a safe place.

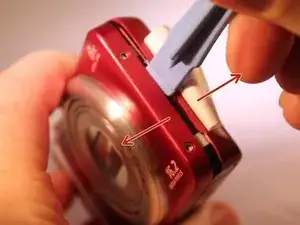

    • Pry the front cover off gently. Use a plastic opening tool if available.

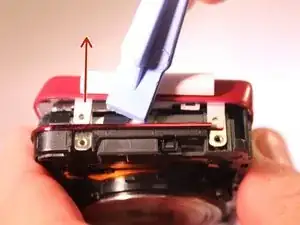

    • Now pry the back cover off gently, using a plastic opening tool if available.

  3. YSHoBMuOlRfgKZ4m

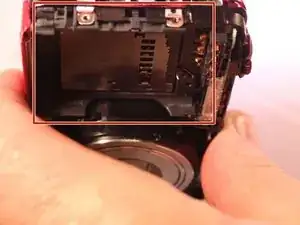

    • Access where the replacement battery will go indicated by the red square in the photo to your left

    • Now insert your new replacement battery

Conclusion

To reassemble your device, follow these instructions in reverse order.
