Sony Cyber-shot DSC-WX100 Lens Assembly Replacement

Written By: Matthew
  • Comments: 2
Sony Cyber-shot DSC-WX100 Lens Assembly Replacement

Difficulty

Difficult

Steps

12

Time Required

35 minutes

Introduction

This guide allows one to remove the lens unit from the camera. Thus is can then be replaced by a new one.

  1. cAa5OS6HCtguGN2W

    • Open the flap indicated to allow access to the battery slot.

    • The gray switch indicated has to be moved to the right in order to release the flap.

  2. 31ac6P5PuoUThv44

    • If the old battery is still in the slot, then make sure the camera is turned off prior to removal.

    • If there is a battery currently in the slot, remove by first pulling downwards on the blue component. This will allow you to remove the battery from the slot.

    Be careful, i got an electrical shock even after removing the battery when i touched the inner case. i guess, you have to wait some time for static electricity to disapear

    Timm von der Mehden -

  3. vDIFPEsBJY2NUIVr
    vDIFPEsBJY2NUIVr
    wOlZPgZpydDPJV4b
    PFsHC2qQpg35EHs6

    • Remove all of the 1mm screws using a Philips #000 Screwdriver.

    • Remover the rest of the screws (2mm) from the camera covers using a Phillips #000 Screwdriver.

  4. IRudCFSqG5UowNAY
    IRudCFSqG5UowNAY
    xZAH2lbJUKNHRukX

    • Use the plastic opening tool to gently remove the front and back plates of the camera.

  5. JtLsABVYMTEpIMlv
    JtLsABVYMTEpIMlv
    oExtYuqH5CgVIvaN

    • Use a plastic opening tool to gently release the two indicated tabs.

  6. Pull up on the lower end of the plate. Lift it so that the plate is uninhibited by the indicated bump.

    • Pull up on the lower end of the plate. Lift it so that the plate is uninhibited by the indicated bump.

    • Pull away from the camera at the end of the metal plate with the blue circuits to then remove the plate from the rest of the camera.

    • For help with this step, refer to the video.

  7. tUDMWBiGP2N4yAFF
    tUDMWBiGP2N4yAFF
    bCeZZW3vxqmVeJ2U
    TNdxvH5ZtkNhmwhl

    • Remove this screw (1mm) with the Phillips #000 Screwdriver.

    • Gently lift the LCD screen component from the metal plate.

    • Remove the metal plate that was underneath the LCD screen from the camera.

  8. BKLF4Um5CoXK1LOC
    BKLF4Um5CoXK1LOC
    jfTWetJynnEwDT3y
    nRGYnyGR2jJZHjfX

    • Peel back the copper sheet.

    • Unscrew the three marked screws (2mm) using a Phillips #000 Screwdriver.

    • Remove the panel attached by said screws.

  9. jvYB4Uxbyew1dFsZ

    • Peel back both the copper sheet and the black tape underneath the panel to expose the connection port.

  10. CSIXAufeudya1sha
    CSIXAufeudya1sha
    1bGlxRhWxlcy2Rw1
    bsjgmcW5Kgdi3mgi

    • Use a plastic opening tool to pry the black bar upwards.

    • Pull the image sensor out after the black tab is released.

  11. 2Mkoo2H6KLF63nNS

    • Peel back the black tape to reveal the connection port shown below.

  12. KDHgf4mDOgSEDpRp
    KDHgf4mDOgSEDpRp
    BJrcnlhaBqiJDTLj
    2Bf6ZLyFPLbXYXYe

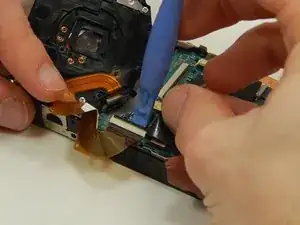

    • Pry the black bar upwards with a plastic opening tool.

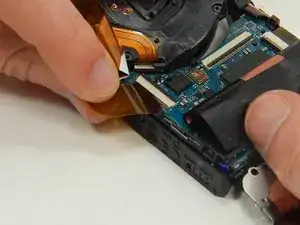

    • Remove the wire sheet from the connection port.

Conclusion

To reassemble your device, follow these instructions in reverse order.
