Sony Cyber-shot DSC-W55 Motherboard - Second Half Replacement

Slide the battery cover in the direction the arrow points.

Pull the battery cover towards you.

Flick the blue switch for the battery to pop out.

Remove the battery from the camera.

Using the Phillips #00 Screwdriver, remove the two screws from the caution panel.

Remove that panel.

Remove the screw with a Phillips #00 screwdriver from the left side of the camera (with '3x optical zoom' engraved on the side panel).

Remove that panel.

Remove the screw using the Phillips #00 screwdriver from the bottom of the camera, closest to the back cover.

Gently remove the back cover.

Remove the screw using a Phillips #00 screwdriver on the right side (where the caution panel used to be).

Remove the small screw using a Phillips #00 screwdriver on the bottom of the camera attached to the front cover.

Gently remove the front cover.

Flip the black secure locks off. Tweezers may be necessary.

Detach the two orange cables.

Gently pull the lens container out of the camera.

Remove the black screw using a Phillips #00 Screwdriver on the motherboard.

Remove the two orange cables on the top of the motherboard with tweezers.

Lift the motherboard out of its slot.

For the AV port, detach the bottom orange cable.

For the LCD screen, detach the top orange cable on the right side of the motherboard.

For the motherboard, detach all the orange cables.

Verify the orange cables from the motherboard are removed from the LCD screen.

Lift the LCD screen off the hinge.

Verify that the LCD screen is attached to the chip on the back on the camera.

Remove the dial from the back of the camera. It pops right off very easily.

Remove the screw using a Phillips #00 Screwdriver from the camera.

Remove the orange cable that is attached between the top of the camera and the chip. It should slide straight out with a little bit of force.

Remove the chip and the LCD screen now from the camera.

The chip may need a slight upward tug with a fingernail or tweezer.

Verify that the orange cables from the top piece are removed from the motherboard.

Remove the screw using a Phillips #00 Screwdriver on the upper part of the back side.

Slowly twist out the flash assembly.

It is attached to the hinge so a little force is necessary.

Verify the red, white, and black cables are still attached to the camera.

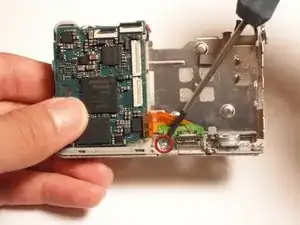

Remove the screw using a Phillips #00 Screwdriver near the AV port

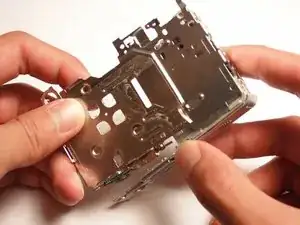

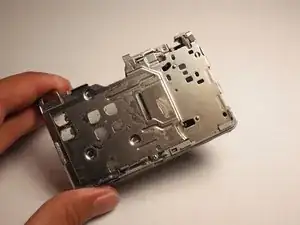

Remove the bottom part of the camera (where the battery is inserted into).

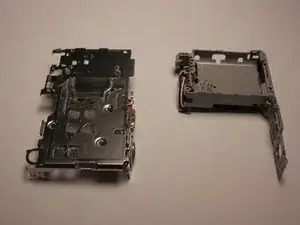

This should detach the rest into two pieces. Place the other aside.

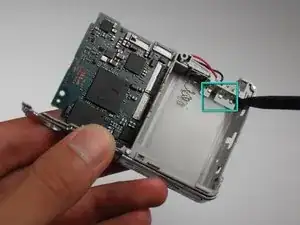

To remove the crimps, use the spudger to push into gold part of the crimp and pull the wire out gently.

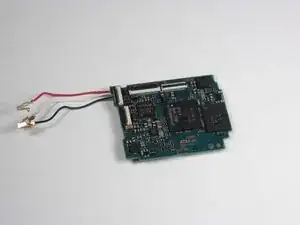

Remove the motherboard from the camera.
