Sony Cyber-shot DSC-T9 AV Port Replacement

Written By: Stephannie Allen
  • Comments: 0
Sony Cyber-shot DSC-T9 AV Port Replacement

Difficulty

Moderate

Steps

16

Time Required

No estimate

Introduction

This guide will teach the user how to disassemble and access the AV port for replacement or installation.

  1. rTcgis2rA2FBYUK4

    • The battery cover is located on the right side of the camera.

    • Slide the cover to expose the battery.

  2. mIV4RPQ3BEHBnTZl

    • Ensure that the battery lines up properly with the slot in the camera.

    • Slide battery in.

    • Slide cover closed.

    • Battery not shown

  3. 6hl3hRyF4wgqFqRJ

    • This is the camera without the front cover.

  4. UPG4tHMDKuvwEj4Z

    • Remove tripod piece located at the bottom of the camera. This piece should slide out with ease.

  5. fqwfgEUfrxHJCP4a
    fqwfgEUfrxHJCP4a
    SeSUnuqnBoyHbs2K
    B6lrsB6aeABTDPBb

    • Slide open the top panel. This is located on the top of the camera, where the power button and shutter button are.

  6. EUTHwc4nAHRBLNJC
    EUTHwc4nAHRBLNJC
    ejwUERBfkspyeaMq
    AGSuPPgm5eXbIxrg

    • Pull apart the inner hardware from the back case by prying on the left side.

  7. fNupZxiLBxOWnjDh

    • Remove the back cover.

  8. vxICX46BG1xSFrWT

    • The back cover is now removed from the internal hardware.

  9. MxxaYSaP6pgR6sJH

    • This is the CCD module.

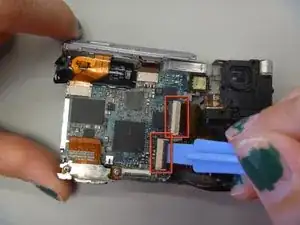

  10. CLimOvFmExu4vSFu

    • Use plastic opening tool pop open the two ribbons attaching to the CCD module.

    • These are the two ribbons.

  11. jmphpQuRBH2WFtYv

    • Remove CCD module.

    • You may have to tug on the ribbons to remove the CCD module.

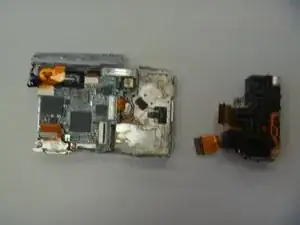

  12. KLZICEjRVXCFjXeb

    • The CCD module is now removed from the camera.

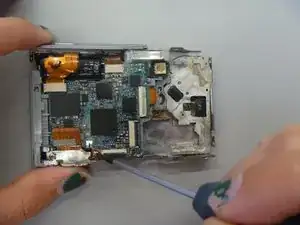

  13. TjqiBk1D3JCsLnNY
    TjqiBk1D3JCsLnNY
    i6SpfJVqSWgKKIEX

    • These two screws hold in the AV port.

    • Use Phillips screwdriver to remove screws.

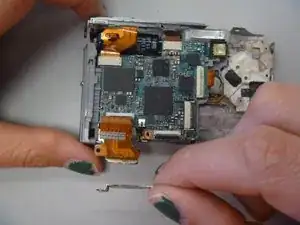

  14. YcARYEYvjQ4aAYYc

    • Remove metal screw plate.

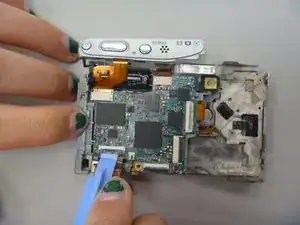

  15. M1ZnNLntKBvZqg41

    • Use pry stick to pop off ribbon.

  16. nlKqqtFGVX1FhE4G

    • Remove AV port from camera.

Conclusion

To reassemble your device, follow these instructions in reverse order.
