Sony Cyber-shot DSC-T1 LCD screen Replacement

Difficulty

Difficult

Steps

12

Time Required

15 - 20 minutes

Introduction

The LCD screen is an essential components to the camera that will allow view-back of images. It is required to first remove the battery, the CCD black plastic housing, and the motherboard to access the LCD screen.

  1. LMFLNhVwR1GFgbmk

    • Locate the cover on the bottom of the camera.

    • Slide the cover towards the back of the camera.

    • Be careful—the battery can slide out on its own.

  2. Kk5O1yAYEEmTKZUh

    • Carefully remove the exposed battery.

    • If it is difficult to remove, flip over the camera and the battery will slide out.

  3. lNrXMreQxRnLkTpO
    lNrXMreQxRnLkTpO
    dRaxjBT315ucTIq5
    ANEOlAvGhefGG5o4

    • Locate and remove the 3mm screws on the top and sides of the camera with the size 00 screwdriver.

  4. chIQZTRZp4bGYOIR

    • Pull the two halves of the camera apart.

    • Place the two halves down with the insides facing you.

  5. 6sEdFwCsURiCcGYc

    • Find the two clips holding the motherboard to the black lens box.

    • Slide the plastic opening tool in between the ribbon and the black part of the clip, then flip it. (If difficult, your fingernail can also be used)

  6. AQS5ZJRXJNYZdiIi

    • After releasing the clips, pull out black lens box.

  7. GBWY4L3v4o6iputa
    GBWY4L3v4o6iputa
    XwkmDXECQbbfmGMP

    • Use the plastic opening tool to flip the clip.

  8. J1YMdfEv3SkKC4ho
    J1YMdfEv3SkKC4ho
    IeEeDlGKst13jJfR

    • Grab the white part and slide it to the right until it clicks.

    • This may require some force.

    • Pull out the flash.

  9. TnlIBMKou3FlAFA1

    • Use the plastic opening tool to flip the top clip that holds the ribbon to the motherboard unit.

  10. KDo3BALteEJGXPlR
    KDo3BALteEJGXPlR
    4IVT3MaTiqU4pG6Z

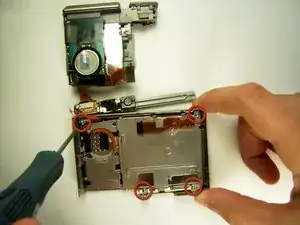

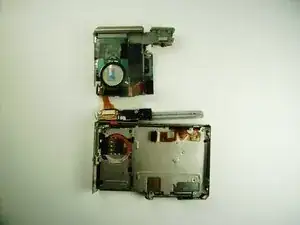

    • Flip the motherboard unit up to expose the metal plate beneath it.

    • Remove the four 3mm screws shown using the 00 screwdriver.

  11. bIVIiritSjNZQ3H3

    • Lift and remove the metal plate covering the LCD screen from the camera.

  12. LMrjg61oesfGVd1C
    LMrjg61oesfGVd1C
    5ZWtIQhWKrtxFpJJ
    cQdQSOrDrMnSb5Jg

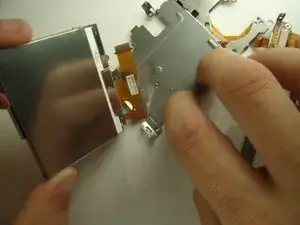

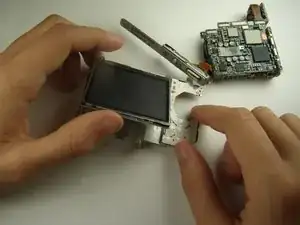

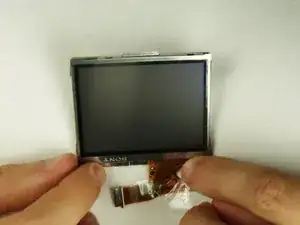

    • Flip the LCD over to the other side of the camera.

    • Peel the tape connecting the LCD to the camera.

    • Remove LCD screen

Conclusion

To reassemble your device, follow these instructions in reverse order.
