Sony Cyber-shot DSC-P52 Flash Unit Replacement

Written By: Trevor
  • Comments: 2
Sony Cyber-shot DSC-P52 Flash Unit Replacement

Difficulty

Moderate

Steps

12

Time Required

20 minutes - 1 hour

Introduction

The camera will need to be completely disassembled to get to the flash, so only do this as as a last resort.

  1. Zdifga6btoHisELE

    • Open the battery compartment and remove the batteries.

    • Remove all of the visible screws on the outside of the case.

    • There should be three of them that are all easily located.

  2. dti2SEuQUx1wHLPb

    • Open the memory card compartment.

    • Remove the screw next to the memory card slot.

  3. RIWPa3odMwLExFdN

    • Pull apart the front and back cover pieces carefully.

    • The front cover should come completely free with little effort.

    • The back cover will still be attached to the circuit board.

  4. NJMrDPPJbpBLcnNF

    • Simultaneously unclip all of the clips holding in the circuitry. Remove the back case.

    • The circuitry will still be connected to the back case by ribbon cables.

  5. oAAMsW2xjYxNjqmm

    • Open the case as shown.

  6. ukQVEFTlNGv4PJ2G

    • Unclip the clip holding the ribbon cable in.

    • Other ribbon cables might not have a clips.

  7. HAvdOMHnKpQhaqsZ

    • Pull the ribbon cable out.

  8. EdwyZ455qTC1IgAs

    • Remove all six screws on the front side of the motherboard circled in the picture.

    • Pull the motherboard from the rest of the housing.

    • It will still be connected to the flash unit.

  9. XKNAHOuUYkNGFkTe

    • Remove the cable on the back side of the motherboard.

  10. TML1WUe1nqiTw6ZL

    • Detach the ribbon cables shown.

    • Careful! Touching the leads of the large yellow capacitor can result in a painful shock.

    • Remove the flash unit from the motherboard.

    I actually accidentailly did touch the capacitor - It did indeed hurt. Don't do it!

    Kaz -

  11. ZZi5tUao4bXkXEOZ

    • Discharge the yellow capacitor attached to the flash unit by shorting the leads with a screw driver.

    • Avoid touching the leads with your hands, as this can result in a painful shock.

    Discharge the yellow capacitor attached to the flash unit by shorting the leads with a screw driver having a non-conductive handle.

    Stephen Daugherty -

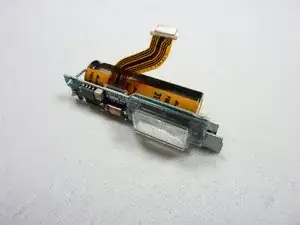

  12. cWGKnY63oNioVXvQ

    • Replace the flash unit.

Conclusion

To reassemble your device, follow these instructions in reverse order.
