Introduction
This guide gives a simple step-by-step process for removing and/or replacing the battery. Battery removal is required for most other repairs of this device.
-
-

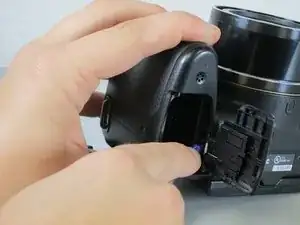

Push down and away from the camera to the left on the indicated indentation in the battery cover. The compartment should slide open as shown.
-
-
-
Push the blue tab towards the camera body to the right, while simultaneously pulling out the battery.
-
Conclusion
To reassemble your device, insert the new battery in the compartment, making sure that your battery has the correct orientation, then follow these instructions in reverse order.
