Sony Cyber-shot DSC-H20 Screen Replacement

Written By: Rachel Payne
  • Comments: 2
Sony Cyber-shot DSC-H20 Screen Replacement

Difficulty

Moderate

Steps

12

Time Required

No estimate

Introduction

  1. CeLqThGW3vlAw5oB
    CeLqThGW3vlAw5oB
    Yw2LgULyiEEODEFF

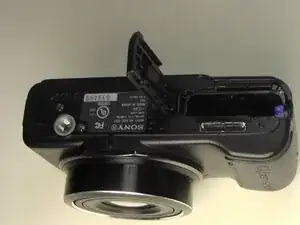

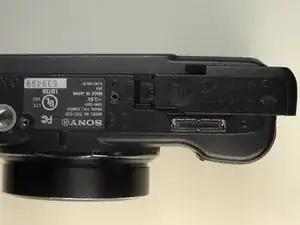

    • Slide open the battery cover and remove the battery and the Memory Stick Duo.

    • Return the battery cover to its closed position.

  2. onhrLDShr2fwjtFJ

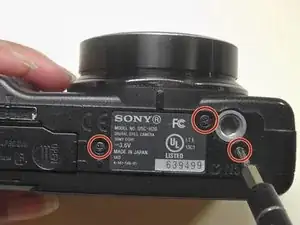

    • Remove all three screws from the bottom of the camera.

  3. 1ISN1MoY1o3J6oQX
    1ISN1MoY1o3J6oQX
    CcM1sVFaJM1cOlWt

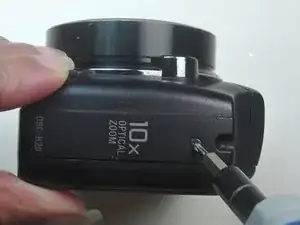

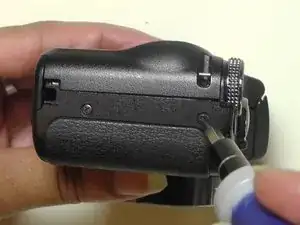

    • Remove the screws on the left and right sides of the camera.

  4. uQlEwacPeiNXZg1e
    uQlEwacPeiNXZg1e
    aykOx32TAapUhfZN
    DRwqVRYqeSSnXK3N

    • Press down on the flash cover to raise the flash.

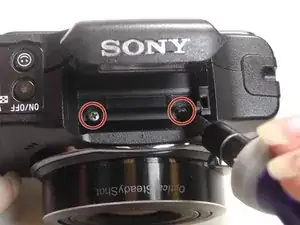

    • Remove both screws that hold the flash cover to the body of the camera.

  5. I1BC3aU3RbCdLqNa

    • Place the camera upside down with the battery port positioned upward.

    • Slide open the battery port.

  6. jeVFWqpfS1lRnJVT
    jeVFWqpfS1lRnJVT
    TDMRUKLMvZdGOTqj
    TaH6U53vL1NIkyDo

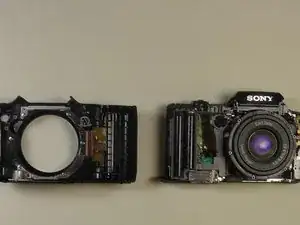

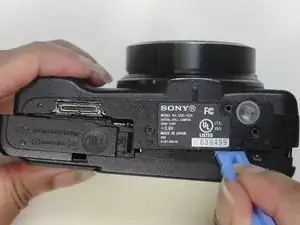

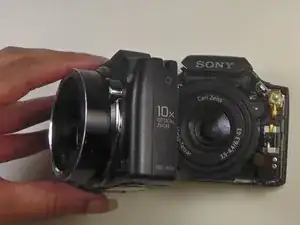

    • Pry the front cover of the camera off with the plastic opening tool.

  7. EqNeCnqfptxHegRr

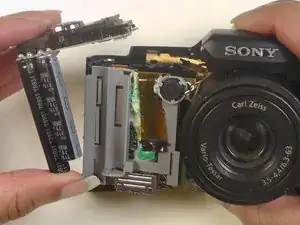

    • Remove the power shutter unit.

  8. HOdqSaVQXVHxEKPw
    HOdqSaVQXVHxEKPw
    D3LWFW11Rv6sEGdC

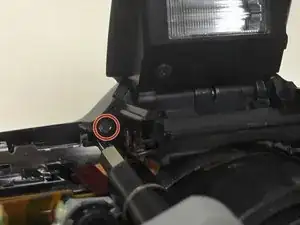

    • Unscrew the screw located at the back left corner of the flash component.

    • Set the flash component aside.

  9. DP6Jb1nRiRj6DJwu

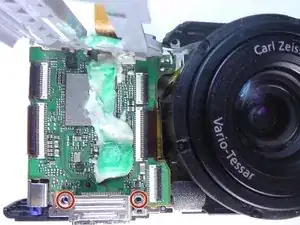

    • Remove the two screws from the bottom of the motherboard.

  10. YHWbScjKZ2WjxBkv

    • Use the plastic opening tool to assist you in separating the metal frame from the back cover of the camera.

  11. 1XRkBiEVQFXWFibG
    1XRkBiEVQFXWFibG
    hWooQuMAsnGudWEE

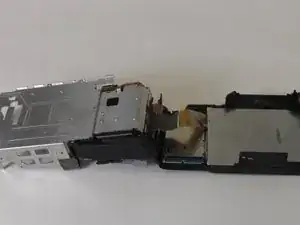

    • Flip the metal frame over to the left side of the camera and onto the surface on which you are working.

  12. JSypMiJSTeTVVZOC
    JSypMiJSTeTVVZOC
    NPQs2v4JnKQXWiFu

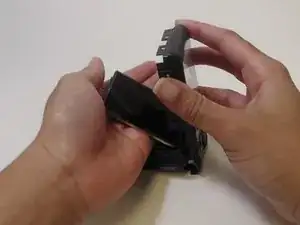

    • Now remove the LCD screen by bringing the back cover over to the left so that the LCD screen falls into your hand.

    I had a pin fall out, I don’t know where it goes now.

    Lucas Vaughn -

Conclusion

To reassemble your device, follow these instructions in reverse order.
