Sony Alpha a7s II Diopter Replacement

Written By: Jabari Montsho
  • Comments: 0
Sony Alpha a7s II Diopter Replacement

Difficulty

Easy

Steps

5

Time Required

5 minutes

Introduction

The diopter is unable to be calibrated, creating an optimal focus issue for the users to match their eyesight.

  1. h3NOW2tWEYLl5p3X

    • Orient your camera so that you are looking at the posterior portion.

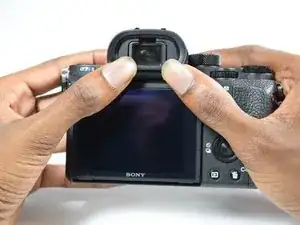

  2. uTCrjkuvXMmKqBtv

    • Place each of your thumbs on the interior portions of the eyepiece cup, pressing down and pushing up.

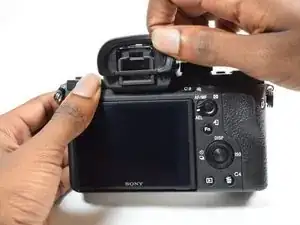

  3. 1UDIyiZyZkhDUEW6

    • Slide the eyepiece off by carefully pulling it upward.

    • Be careful not to come into contact with the viewfinder lens as the lens can be easily scratched.

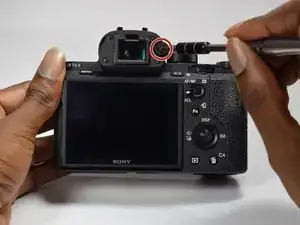

  4. JCmuJvtCPImIrD4F

    • Remove the screw from the middle of the diopter with the JIS #00 screwdriver.

  5. pQErENJss4uwHA1Q

    • Remove the diopter with your hands. If the diopter is at all stuck you can use the pointed tweezers to help aid in the removal process.

    • Be careful not to let fingers or tweezers come into contact with the viewfinder lens as the lens can be easily scratched.

Conclusion

To reassemble your device, follow these instructions in reverse order.
