Sony Alpha A350 Power Switch Replacement

Written By: Sydney Duncan
  • Comments: 1
Sony Alpha A350 Power Switch Replacement

Difficulty

Difficult

Steps

2

Time Required

20 minutes

Introduction

If your power switch is damaged the best option may be to replace it.

  1. 6unQDZFEhuKqriLn
    6unQDZFEhuKqriLn
    Nt3HspwH5OLW2fpa
    lkvWaAfLtHJqfAZF

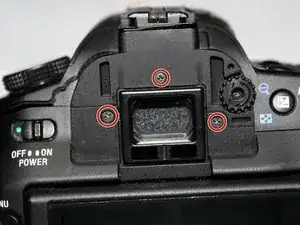

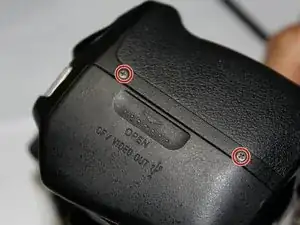

    • Identify and unscrew the ten PH000 screws around the top, front, left, and right sides of the camera body.

    • Screws are very small, can be difficult to remove, and easy to lose.

    13 screws in total

    plus 3 for the side cover

    Alphons Hermans -

  2. GTZw3ffvjHEcPs5A
    GTZw3ffvjHEcPs5A
    pJALtEK1f3Jed6Ln
    5MEPFBcJwUM5H2Md

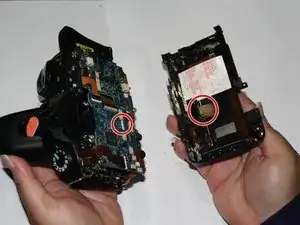

    • Slowly separate the back case from the camera.

    • There may be a ribbon cable connecting the two pieces. Unlock the connector and remove the ribbon cable if necessary.

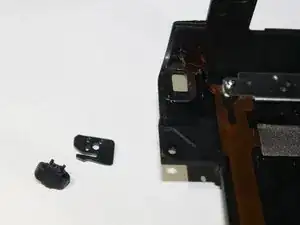

    • Idenify and unscrew the two PH000 screws connecting the power switch.

    • Remove the power switch.

Conclusion

To reassemble your device, follow these instructions in reverse order.
