Sears Craftsman 315.109020 Motor Replacement

Written By: Blake Avant
  • Comments: 0
Sears Craftsman 315.109020 Motor Replacement

Difficulty

Easy

Steps

7

Time Required

15 - 25 minutes

Introduction

Is your old circular saw motor just not running well anymore? This guide will help you to remove that pesky old motor and install a new one.

  1. i2lgB2vVSPsu32yB
    i2lgB2vVSPsu32yB
    ZPAvk1DbKjWbSvtZ

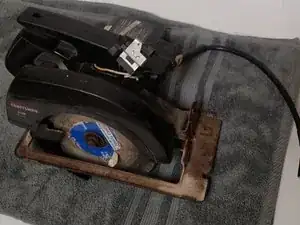

    • To ensure that you do not get grease and dirt on your table or floor, lay a towel down before you begin working.

    • The grease from the circular saw can stain your towel so a dirty towel or work rag is recommended.

  2. HIL4Tp5CtQAX442y
    HIL4Tp5CtQAX442y
    G3GcXxWyZxu6kI4Y
    AXH1HTgQryAk3Vdj

    • With your Phillips screwdriver, unscrew all 7 of the 20 mm screws on the handle of the circular saw.

    • There is one 25 mm screw that goes in the hole circled in red.

    • Unscrew the forked screw head

    • Lift off the top half of the handle.

  3. BFfuK25qweOPTJix
    BFfuK25qweOPTJix
    isx2hIOOPeMmHgNx

    • Unscrew the two wide-head 20 mm screws holding the remaining half of the handle to the motor.

    • Remove the remaining half of the handle from the motor by lifting it over the screw that is keeping it in place.

  4. lhJoA2syBZqHfhsH
    lhJoA2syBZqHfhsH
    EbiGuJHpnvvFkOCg
    xX6uyRyjoVDldepu

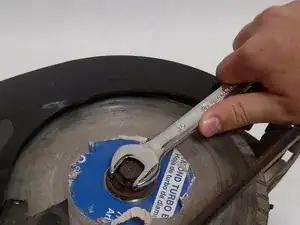

    • Using a crescent wrench, unscrew the hex washer head screw that is holding the blade in place.

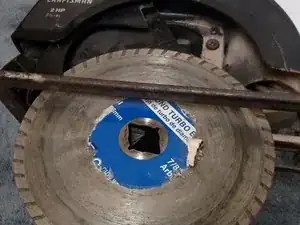

    • Lift the blade over the internally threaded screw and pull it off of the saw.

    • If the hex washer head screw rotates but does not loosen or if the whole blade rotates as you turn your wrench, giving the wrench a quick jerk should loosen the screw.

  5. YXFDJoKojQHAjd42
    YXFDJoKojQHAjd42
    iAkQZZUJNLKMHNvJ

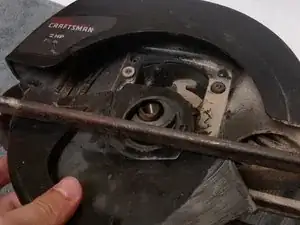

    • Remove the blade cover by applying upward pressure until it unsnaps from the washer.

    • The blade cover will come off easier if it is facing away from the rest of the saw (see second picture).

  6. yPujYSL3S1SAaEmB
    yPujYSL3S1SAaEmB
    QwxVTjOApqg2ActZ

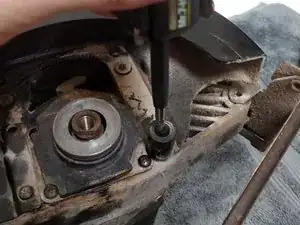

    • Unscrew the 70 mm screw that is inside the black tube (see first picture).

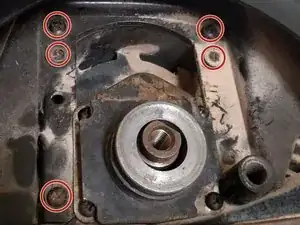

    • Unscrew the five screws as highlighted in the second picture. The bottom left is a 70 mm screw and the other four are 20 mm screws.

    • Unscrewing the remaining four 20 mm screws are unnecessary unless you wish to repair or replace the cogs in the saw.

  7. sFsIoanBAbWoEFvJ
    sFsIoanBAbWoEFvJ
    JDrecYK2UyaGuE2V

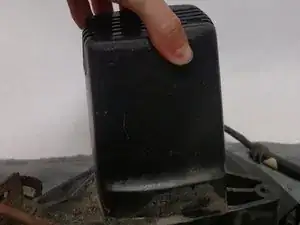

    • The motor will now be loose and you should be able to twist the motor in a counter-clockwise direction until it is able to be pulled off.

Conclusion

To reassemble your device, follow these instructions in reverse order.
