Sanyo VPC-T850 Shutter Button Replacement

Written By: James Robinson
  • Comments: 2
Sanyo VPC-T850 Shutter Button Replacement

Difficulty

Moderate

Steps

12

Time Required

15 minutes

Introduction

  1. WpHcgKmpvu6ioD4y

    • Make sure the camera is powered off by pressing and holding the small, square button embedded in the top rim of the camera.

    jai le meme mais je n artive plus a l allumer et le viseur ne rentre plus comment je dois faire pour l allumer la bayerie ne reste pas fixe pouvez vous m aider en francais merci

    nadine Guchez -

    Bjr j aie le meme appareil photo sanyo 8i vpc-T850*megapixel je n arrive plus a l alummer et la naterie est charger a 100pourcents et elle ne reste pas fix pouvez vous m aider en ftancaismerci

    nadine Guchez -

  2. GESsPv1ytqrtngYr

    • Locate the hatch found on the bottom of the camera.

    • Open the hatch by gripping the small notch and sliding it outwards.

  3. njC5v3Pm32ZdBPK1

    • Push the small, plastic arm out of the way to free the battery.

    • The battery is spring loaded and will pop out slightly when the arm is moved.

  4. KPDcFFgy2XZuMfco

    • Pull the battery out of the camera and close the hatch.

    • To reinsert, there is a triangle on the battery indicating which direction to slide it in.

  5. AWuVEBXaNXrFDQdl
    AWuVEBXaNXrFDQdl
    ojCEC2UrwOyJrtsG
    NTyXTb5qjGxtSTCr

    • Using your Phillips #000 Screwdriver, remove the eight screws located around the sides and bottom of the camera.

    • Be sure to keep track of the side each screw comes from, as they come in different lengths.

  6. ZiXufWHxijMGNSuC
    ZiXufWHxijMGNSuC
    NXgT3mVemMOULQm1

    • Orient the camera so the display is facing up.

    • Gently pull off the rear panel surrounding the display.

    • There are still three green wires connecting the panel to the rest of the camera.

    • Use your prying tool if you have difficulties removing the panel by hand.

  7. JmINOb63qJGMRTCD

    • Remove the eight black screws connecting the keypad circuit board to the rear panel.

  8. NsV2tx3Q2JAHcn4L
    NsV2tx3Q2JAHcn4L
    UntpknbGsNvhjIlX

    • With a plastic opening tool, gently remove the chrome framing on the left and right sides of the camera.

  9. OGSVkFQV3aRBn3it

    • Flip the camera over so the lens is facing up.

    • Gently lift up the front panel to remove it from the rest of the camera.

    • Use your plastic opening tool if you have difficulties removing the panel by hand.

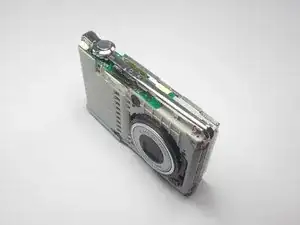

  10. vHe5MoVEG2UDkTuW

    • Find the chrome framing located on the top of the camera.

    • The physical shutter button apparatus is directly attached to this frame.

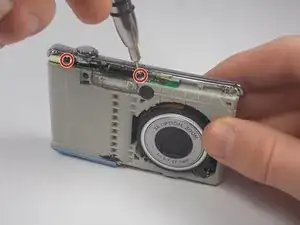

  11. FRYSMRD3WPqrH3fy
    FRYSMRD3WPqrH3fy
    JdetNccsIph1yhUh

    • Remove the three black screws connecting the chrome frame to the camera.

    • Three screws are located toward the front, with the remaining one above the display.

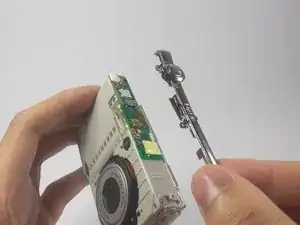

  12. EWDp3fvpcEQHndbB

    • Gently remove the loosened chrome frame and connected shutter button from the camera.

Conclusion

To reassemble your device, follow these instructions in reverse order.
