Sanyo VPC-T700 LCD Screen Replacement

Written By: oldturkey03
  • Comments: 0
Sanyo VPC-T700 LCD Screen Replacement

Difficulty

Moderate

Steps

5

Time Required

30 - 45 minutes

Introduction

  1. fIQ5BTik5jwqrtox
    fIQ5BTik5jwqrtox
    UkBssxOFZw62OhlQ
    QPUpOGI5hJxuuifn

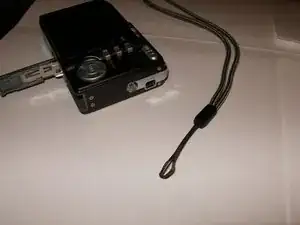

    • Cameras powers on and the broken LCD becomes immediately evident.

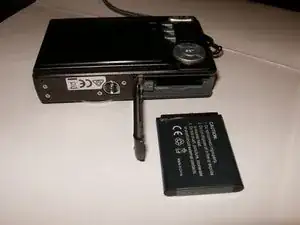

    • Remove the battery

    • Remove the camera strap

  2. 1kBCQPL5MIgO3Hcb
    1kBCQPL5MIgO3Hcb
    RmctWwKGMPy4WOdR
    SvC4iVJSHDbEoZlL

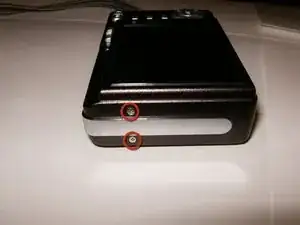

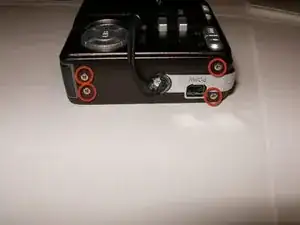

    • Remove the four screws on the right side of the camera

    • Remove the two screws on the left side.

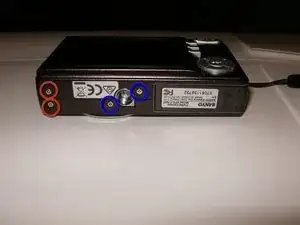

    • remove the four screws on the bottom of the camera.

    • The two screws on the thread for a tripod are longer than the others, keep those separated.

  3. MEvnSPxqNhLu4KaW
    MEvnSPxqNhLu4KaW
    1qdOdojMvbwbKanP
    JLsAvQB1kHr63fGR

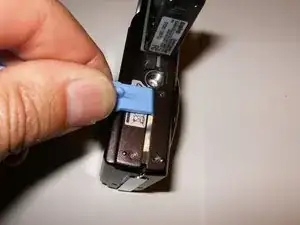

    • Here is a look at the screws from the camera. The two screws from the tripod thread are the longest.

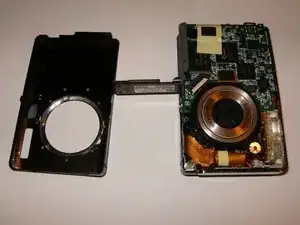

    • Start splitting the housing with either an opening tool or your fingernails. The housing does not require a lot of force and will easily unsnap.

    • The front cover seems to be easiest and will come off first

  4. KMIRPUMEPBOMGLBC
    KMIRPUMEPBOMGLBC
    CTMRGq5SFJOCp3Tv
    UJCFNDLMUUEPVDbB

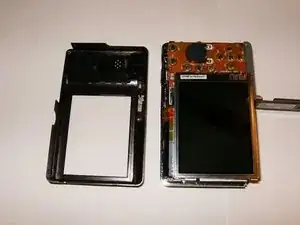

    • The rear cover can now be easily removed. The LCD is sitting in a frame without fasteners. It will just lift up, however, there will be a piece of insulating material that is separating the back of the LCD from the logic board. Remove this after the removal of the LCD from the frame. Do not try to remove the LCD from the PCB yet.

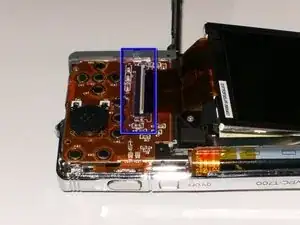

    • Open the ribbon cable connector by pulling the white clasp gently up.

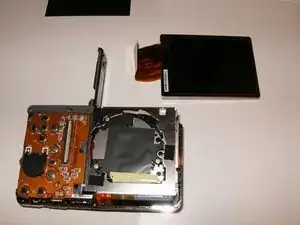

    • Remove the old LCD.

  5. CTsDFyxgBvvh6fXq
    CTsDFyxgBvvh6fXq
    5kS1pD21fUL2XJKY

    • Here is the new LCD. Note the protective cover. Remove that cover by pulling on the green tab after installing the LCD to the PCB.

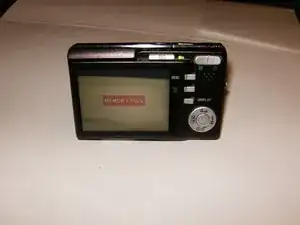

    • After reassembling your camera, hopefully it will look like this.

Conclusion

To reassemble your device, follow these instructions in reverse order.
