Introduction
Use this guide to remove or replace the case.
-
-

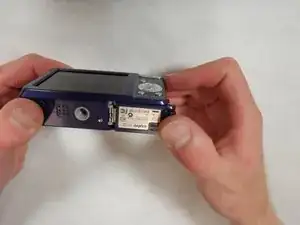

Place your thumb on the right side of the camera over the battery door.
-
Slide the battery door to the right until the door lifts up.
-
-
-
Remove the following six screws using the Phillips #00 screwdriver:
-

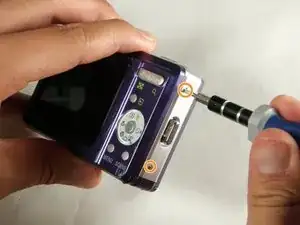

Two screws on the left side of the camera.
-
Two screws on the right side of the camera.
-

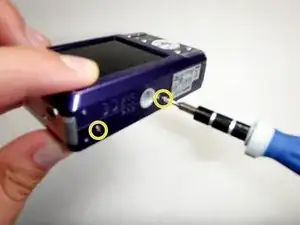

Two screws on the bottom of the camera.
-
-
-

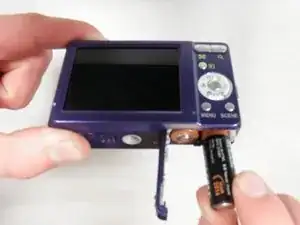

Open the battery slot on the bottom of the camera by sliding the door to the right.
-

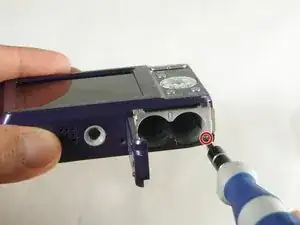

Remove the single 4 mm screw on the bottom right using the Phillips #00 screwdriver.
-
-
-
Insert a spudger in the seam at the bottom of the camera.
-

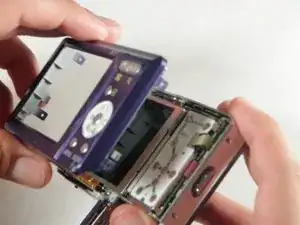

Gently separate the rear case from the front of the camera.
-
-
-

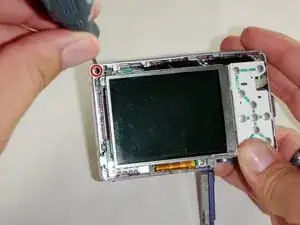

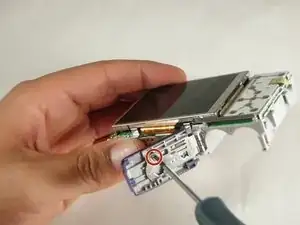

Using the Phillips #00 screwdriver, remove the single screw attached to the front casing in the top left corner. The front case should easily separate.
-
-
-
Using the Phillips #00 screwdriver, remove the screw on the inside of the battery door.
-
Slide the battery door off of the hinge.
-
To reassemble your device, follow these instructions in reverse order.
