Introduction
There are many small things we interact with that make our lives easier that we often don’t think about, such as the wheels of a vacuum, which can deteriorate over time and need replacing. This guide is for Sanitaire SC684 owners who have found their vacuums front wheels in need of replacing.
Tools
-

                  -
            Lay the vacuum on its side.
-
            Using a Phillips #1 screwdriver, unscrew the screws located behind the front wheels on the underside of the vacuum.

-

-

                  -

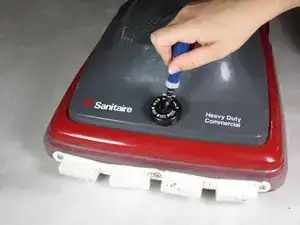

            Stand the vacuum upright, unscrew the single screw located on the center dial using a Torx T20 screwdriver and remove the dial form the vacuum body.

-

-

                  -
            Identify the two gray metal plates at the front of the vacuum.
-
            Using the T20 Torx screwdriver, remove the four screws on the smaller gray plate holding the larger gray metal plates.

-

-

                  -

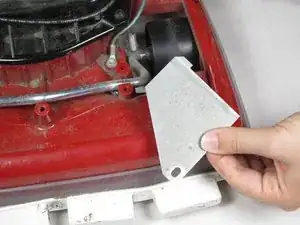

            Remove the small metal plate with the black bolt in the center and the larger gray plate from both sides.

-

-

                  -

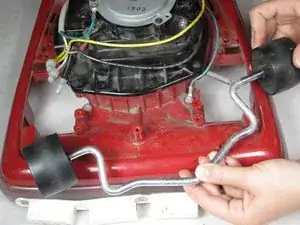

            Pull out the silver bar that holds the two wheels to the vacuum body and detach the small spring from the vacuum body.

-

-

                  -

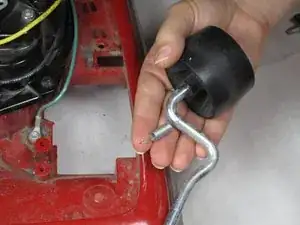

            Remove the wheel from the side with the spring by pulling it off the axel and slide off the spring, as it will be needed for the replacement front wheels.

-

To reassemble your device, follow these instructions in reverse order.
