Sandisk Sansa m230 Series MP3 Player Headphone Jack Replacement

Written By: James Thorne
  • Comments: 0
Sandisk Sansa m230 Series MP3 Player Headphone Jack Replacement

Difficulty

Moderate

Steps

12

Time Required

15 minutes

Introduction

Follow this guide to replace a faulty headphone jack in your Sandisk Sansa m230 Series MP3 Player.

  1. UyPItYVvKFIkOVBX

    • Remove the battery compartment cover.

    • Remove the battery.

  2. SMFxEv5NWyRVrWXQ

    • Locate and remove the screw next to the battery compartment lid.

  3. UwaiNMLyglrfXhGb

    • Locate the interlocking pegs along the seam of the device's casings.

    • Gently pry the pegs apart one at a time, working your way around the case.

    • Be careful when prying apart the pegs: they are made of plastic and may break.

  4. anNXVYYrKvmuZ1vv

    • The battery contact springs may prevent the case from separating.

    • Push the battery contact springs down through the hole in the case.

  5. OLGMtTNU2pjUjTLH

    • The casing protecting the USB and headphone jacks must be removed.

    • Locate and gently pry apart the two interlocking clips holding it in place.

    • The outer casings may now be removed and the MP3 player should separate.

  6. Eiog1RsVGe3Fakc5

    • You now have access to all components found on the inside of the device!

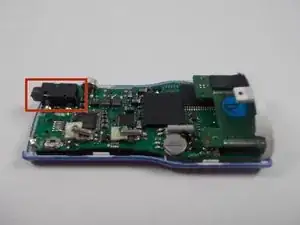

  7. SYZ4vZncF6HvqFUL

    • Locate the headphone jack on the motherboard.

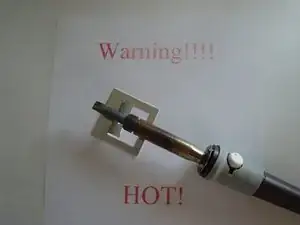

  8. UoBPWXsNb1k3sLSc

    • Ensure the hot end of the soldering iron is elevated on a metal stand when not in use to prevent burns.

    • The solder and soldering iron are very hot! Do not touch unless you are wearing appropriate protective gloves.

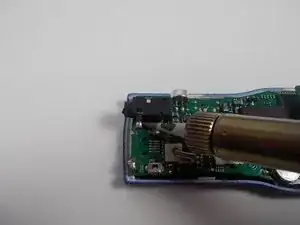

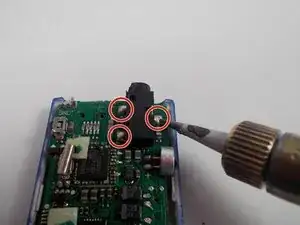

  9. sZdXGrMS1R3ovKCa
    sZdXGrMS1R3ovKCa
    QENEfkZvIXFNg2jw
    BxUaDGTJVKBVW4VO

    • Use soldering iron to melt the existing solder at the three headphone jack connections.

  10. Gsvjn6yaVdkjpxb1

    • Remove the faulty headphone jack from the motherboard.

  11. uKYtBbwyYqrlNnpo

    • Align the new headphone jack appropriately on the motherboard for soldering.

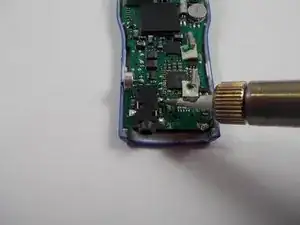

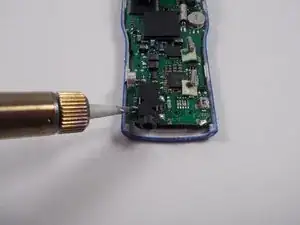

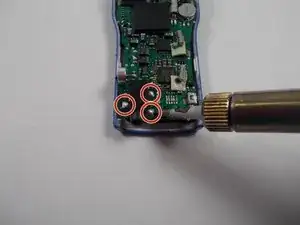

  12. KPSEQ62HXLW5lVOQ
    KPSEQ62HXLW5lVOQ
    HU4iUTgQl4T5it3s
    hVZIQfnNQ3MKHEbD

    • Use the soldering iron and solder to create three stable connections between the motherboard and the headphone jack.

    • Allow the new solder to cool and harden before reassembling the MP3 player.

Conclusion

To reassemble your device, follow these instructions in reverse order.
