Samsung WB2200F Flash Option Button Replacement

Written By: Rachelle
  • Comments: 0
Samsung WB2200F Flash Option Button Replacement

Difficulty

Moderate

Steps

10

Time Required

15 minutes

Introduction

Using this repair guide, the user will be able to replace the flash option button on the device.

  1. XoCGLqOBEAIyVHsP

    • Place the camera upside down on a hard surface such as a table. Make sure that the battery compartment is visible.

  2. BGbuQMwAI2jCuNLW

    • Twist the nob counter-clockwise while pushing cover to the left. Then pull the cover up to reveal the battery.

  3. tJAwAriIyfWMHBYV

    • Slide the blue tab to the right to release the battery.

  4. Aov1CYMjd1VTmuNp

    • Carefully slide the battery out of the camera. It can then be replaced with a new battery.

  5. DBOPBfEdTVetrMhT
    DBOPBfEdTVetrMhT
    QaqoeHtBmw4xg5cC
    kRZRwjYNZfMxaxBB

    • Remove the 6mm screws located on the bottom and sides of the camera using the using the screw driver with the JIS size 000 head.

  6. Pdkm2uHVQfnsvJFk

    • Remove the two 6mm screws located underneath the battery cover using the same screw driver with the JIS size 000 head.

  7. qhwCM2qQdwRDLZxe

    • Carefully pry the face-plate away from the body of the camera, starting from the battery compartment. It should come off without too much trouble, although it may require force.

    • Make sure to not damage any of the electronic components of the camera

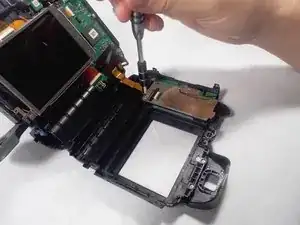

  8. HYugtOJnCPYenE25

    • Looking at the back of the exposed face plate, remove the four 5mm screws, that hold down the metal cover, using the screw driver with the JIS size 000 head.

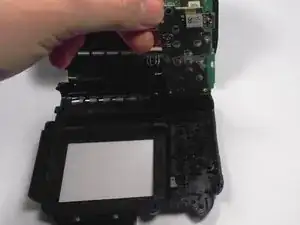

  9. LSUpkPMNOyN1Ztuk

    • Gently lift off the metal cover.

  10. kNiYP36m6Qgngq55

    • Clean out any dust or debris from the button interface.

    • Replace faulty button.

Conclusion

To reassemble your device, follow these instructions in reverse order.
